ENTFESSELN SIE NÄCHSTGENERATIONS-MACHT

X Mighty Platinum 2000W 230V

• Fortschrittliche Aluminium-Wärmestruktur

• 80 Plus Platinum Effizienz-Zertifizierung

• ATX 3.1 Unterstützung & zwei langlebige 12V-2x6 Kabel

• Unterstützung für zwei 40er-Serie GPUs

• Digitales Energiemanagement-System

• 10 Jahre Garantie

region
Entfesseln Sie Nächstgenerations-Macht

Das X Mighty Platinum ist ein Kraftpaket, das Hochleistungskapazität, erstklassige Industrial-Grade IC-Komponenten und ausgeklügelte verschachtelte PFC-Topologie vereint. Dieses Netzteil wurde entwickelt, um die anspruchsvollen Bedürfnisse der Server- und KI-Industrie zu erfüllen, mit zwei 12V-2x6 Anschlüssen für anspruchsvolle Hochleistungsanwendungen.

Entfesseln Sie Nächstgenerations-Macht
Entfesseln Sie Nächstgenerations-Macht

AI-Ready Dual GPU Support with Color-Coded Precision

Supports dual 12V-2x6 connectors for dual GPU configurations, ideal for AI and machine learning workloads. Features dual-color connects (black and purple) to ensure correct installation.

Infineon Industrial-Grade Chipset for Enduring Reliability

Infineon industrial-grade chipset ensures long-lasting reliability

Active Bridge Rectifier for Boosted Efficiency and Stability

Active bridge rectifier for enhanced power efficiency and stability

Advanced Aluminum Design for Superior Cooling and Durability

Advanced aluminum thermal structure ensures excellent heat dissipation and durability

Premium Japanese Capacitors for Silent, Long-Lasting Performance

High-quality Japanese capacitors improve longevity and reduce electrical noise

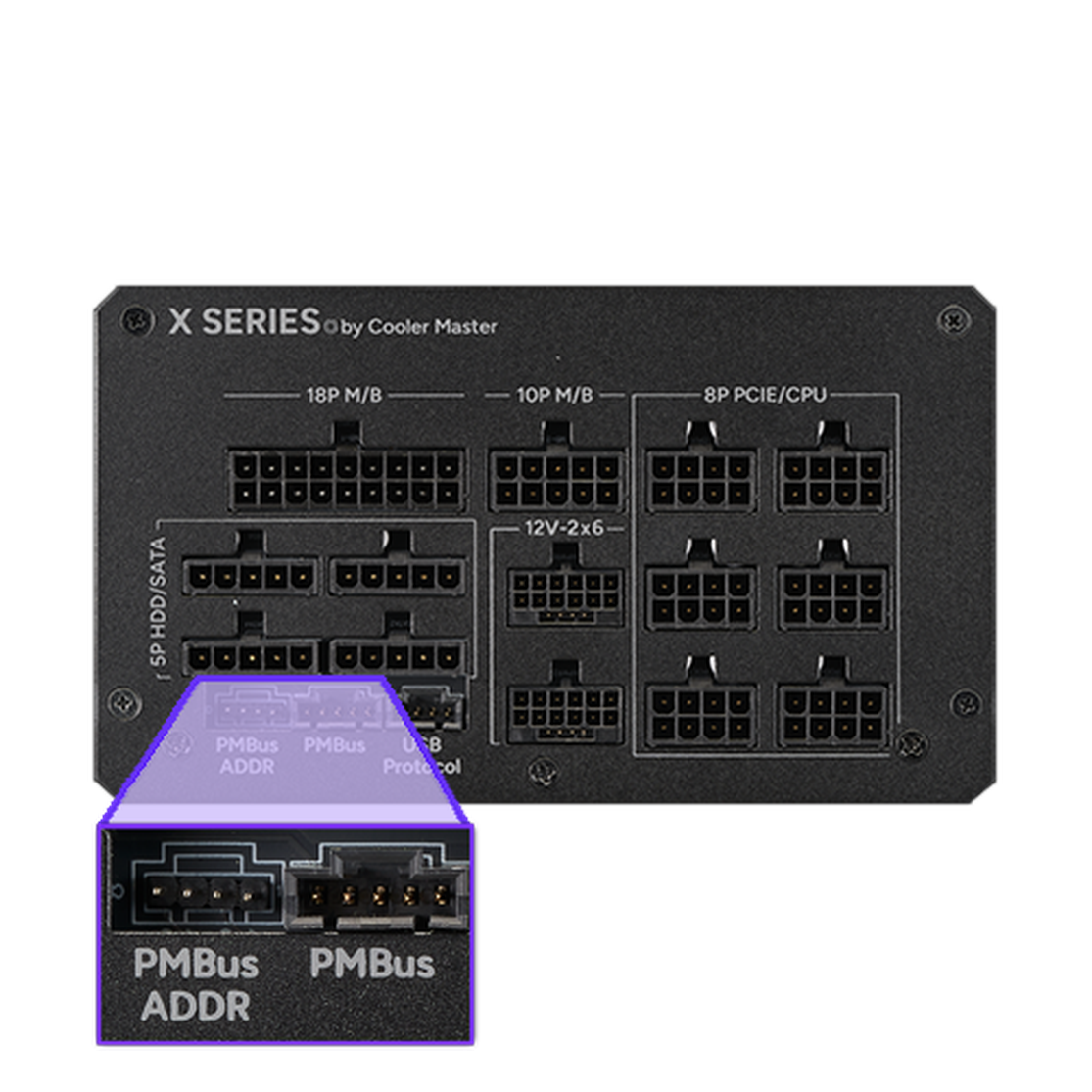

PMBus Support for Enterprise-Grade Performance Monitors

PMBus port support offers enterprise-grade performance monitoring capability

Spezifikationen

  • Modell MPS-K001-AFBP
  • ATX-Version ATX 12V Ver. 3.1
  • PFC Active PFC
  • Eingangsspannung 115 - 240V (115 - 240V for 1600W / 200 - 240V for 2000W)
  • Eingangsstrom 16A (Max)
  • Eingangsfrequenz 50-60Hz
  • Abmessungen (L x B x H) 180 x 150 x 86 mm
  • Lüftergröße 120mm
  • Lüfterlager FDB
  • Lüftergeschwindigkeit 2500 RPM
  • Effizienz ≥ 94% @ Typical Load
  • 80 PLUS-Bewertung 80 PLUS Platinum of EU Internal
  • ErP 2014 Los 3 Yes
  • Betriebstemperatur 0-50°C
  • Power Good-Signal 100 - 150 ms
  • Wartezeit ≥ 16ms
  • MTBF >100,000 Hours
  • Schutzmaßnahmen OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Regulatorisch cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
  • ATX 24-Pin-Anschlüsse 1
  • EPS 4+4-Pin-Anschlüsse 1
  • EPS 8-poliger Stecker 1
  • SATA-Anschlüsse 12
  • Peripherie-4-Pin-Anschlüsse 4
  • PCI-e 6+2-Pin-Anschlüsse 4
  • 12V-2x6-Anschlüsse 2
  • USB 10P-Anschluss 1
  • PMBus 5-poliger Anschluss 1
  • Serie X Series
  • 80 Plus Effizienz Platinum
  • Modular Fully Modular
  • Kategorie Above 750W
  • Formfaktor ATX
  • Watt 2000W
