Klein, aber kraftvoll

V SFX Gold 750W ATX 3.1 White Edition

• Flexible Kompatibilität

• ATX 3.1 Unterstützung & 90-Grad-12V-2x6-Kabel

• 80 PLUS Gold zertifiziert

• Vollständig modulares Kabelmanagement

• 100% japanische Kondensatoren

• 10 Jahre Garantie

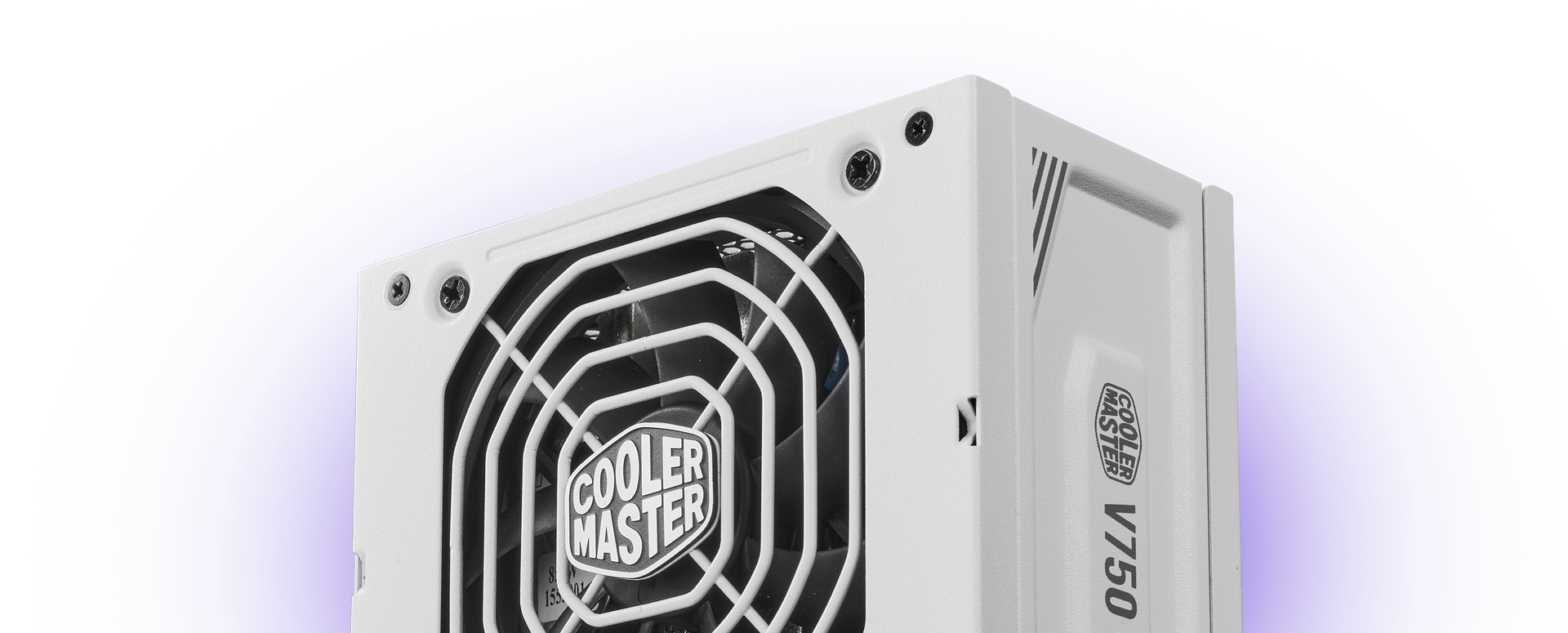

Klein aber oho

Als führendes SFX-Netzteildesign bietet das V SFX Gold eine hochleistungsfähige Einheit in einem platzsparenden Mini-Formfaktor.

Klein aber oho
Klein aber oho

ATX 3.1-Unterstützung & ein robustes 90-Grad-12V-2x6-Kabel

80 PLUS Gold zertifiziert

Das V SFX Gold ist zertifiziert, bei typischer Last mehr als 90% Effizienz zu erreichen.

100% japanische Kondensatoren

Hochwertige japanische Kondensatoren bieten verbesserte Effizienz und reduzierten Rippel-Störabstand.

Vollständig modulare Kabelführung

Die modulare Kabelführung reduziert das Kabelgewirr, verbessert den Luftstrom und die gesamte Wärmeleistung.

Produktspezifikationen

  • Modell MPY-7501-SFHAGV-3EW*
  • ATX-Version ATX 3.1 & SFX 12V Ver. 3.42
  • PFC Active PFC
  • Eingangsspannung 100-240V
  • Eingangsstrom 10-5A
  • Eingangsfrequenz 50-60Hz
  • Abmessungen (L x B x H) 100 x 125 x 63.5 mm
  • Lüftergröße 92mm
  • Lüfterlager FDB
  • Wirkungsgrad 90% @ Typical Load
  • 80 PLUS-Bewertung 80 PLUS Gold
  • ErP 2014 Lot 3 Yes
  • Betriebstemperatur 0-50°C
  • Power-Good-Signal 100 - 500 ms
  • Haltezeit 16ms
  • MTBF >100,000 Hours
  • Schutzfunktionen OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Zertifizierungen TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
  • ATX 24-Pin-Anschlüsse 1
  • EPS 4+4-Pin-Anschlüsse 1
  • EPS 8-Pin-Anschluss 1
  • SATA-Anschlüsse 8
  • Periphere 4-Pin-Anschlüsse 4
  • PCIe 6+2-Pin-Anschlüsse 4
  • 12V-2x6-Anschlüsse 1
  • Serie V SFX Series
  • 80 Plus Effizienz Gold
  • Modular Fully Modular
  • Formfaktor SFX
  • Watt 750W
