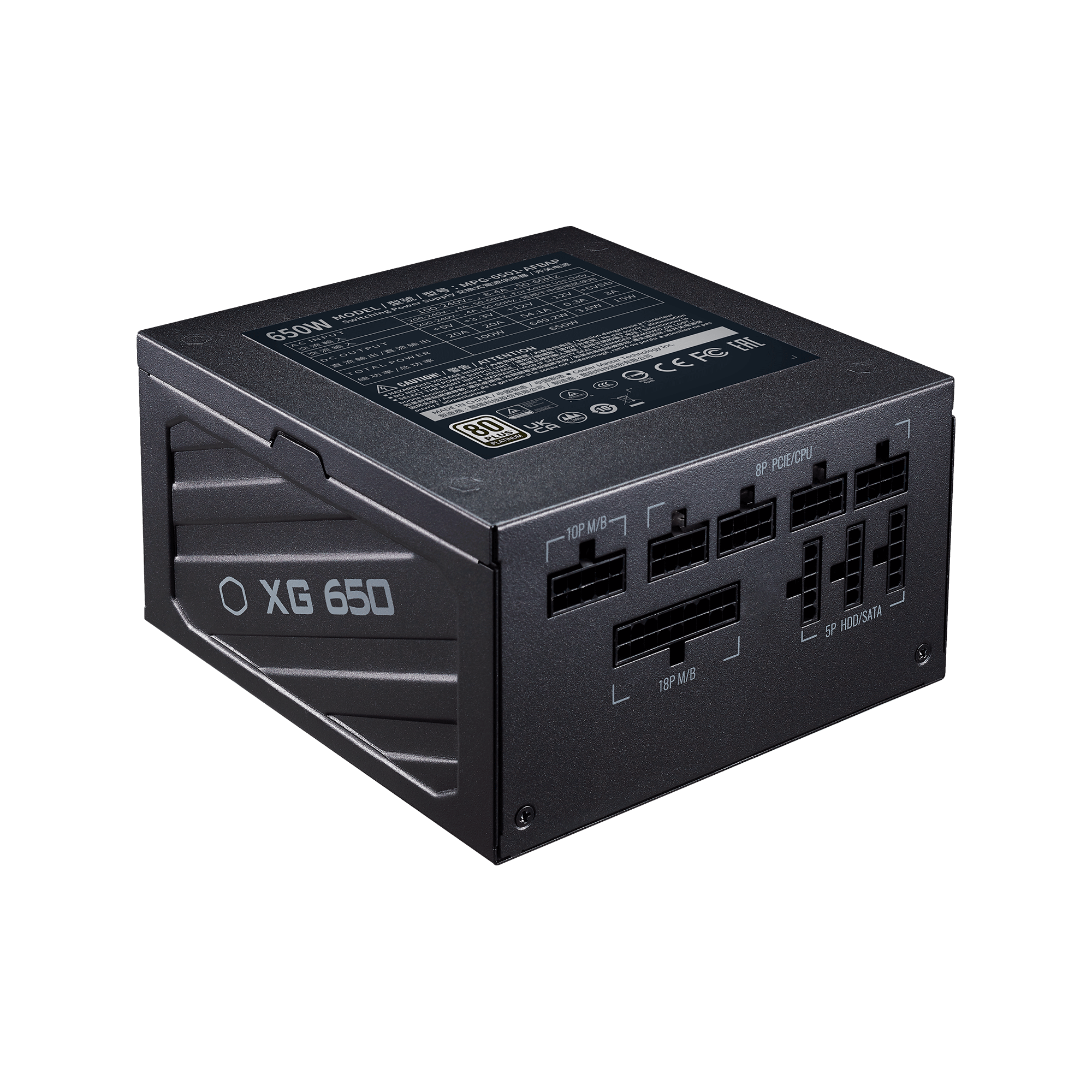

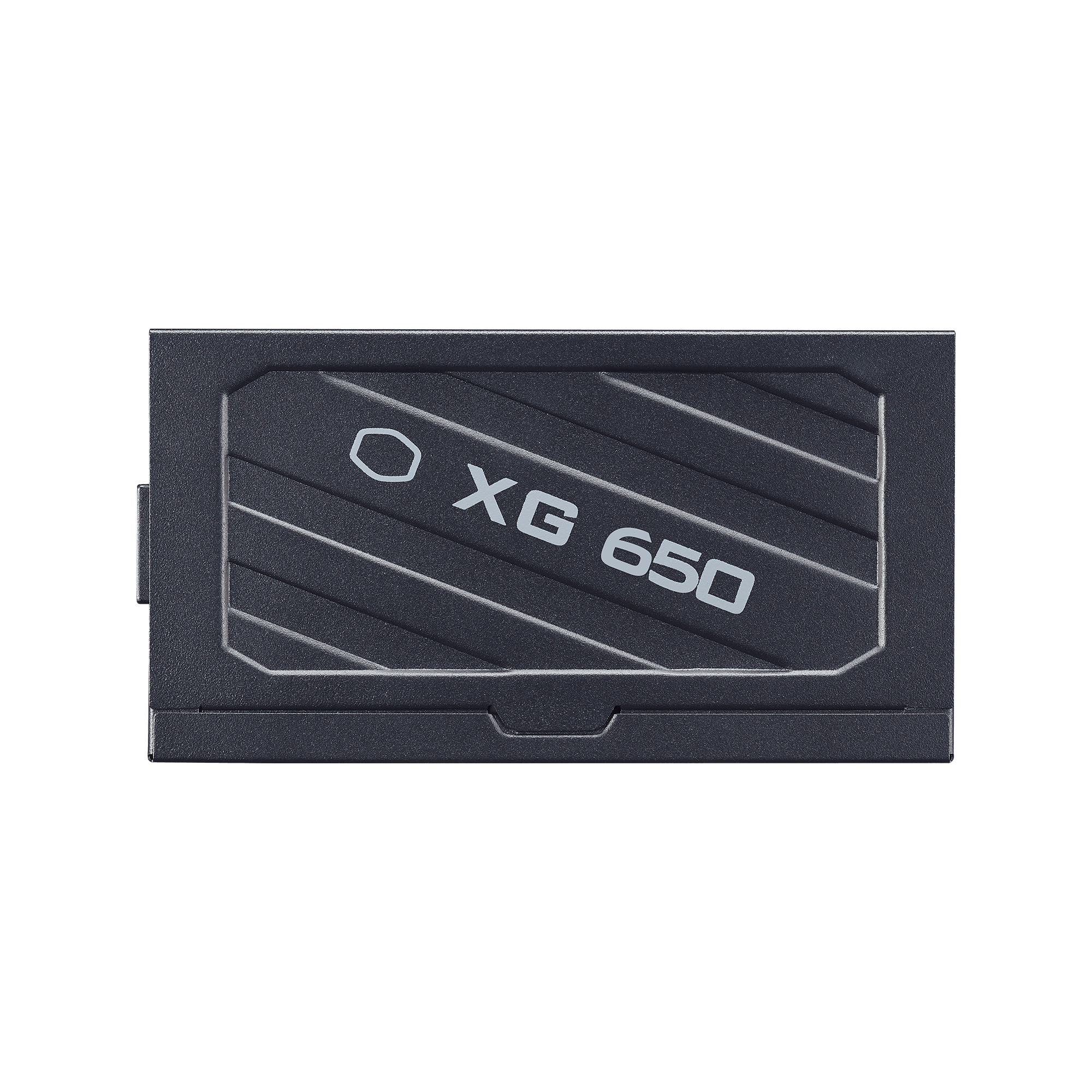

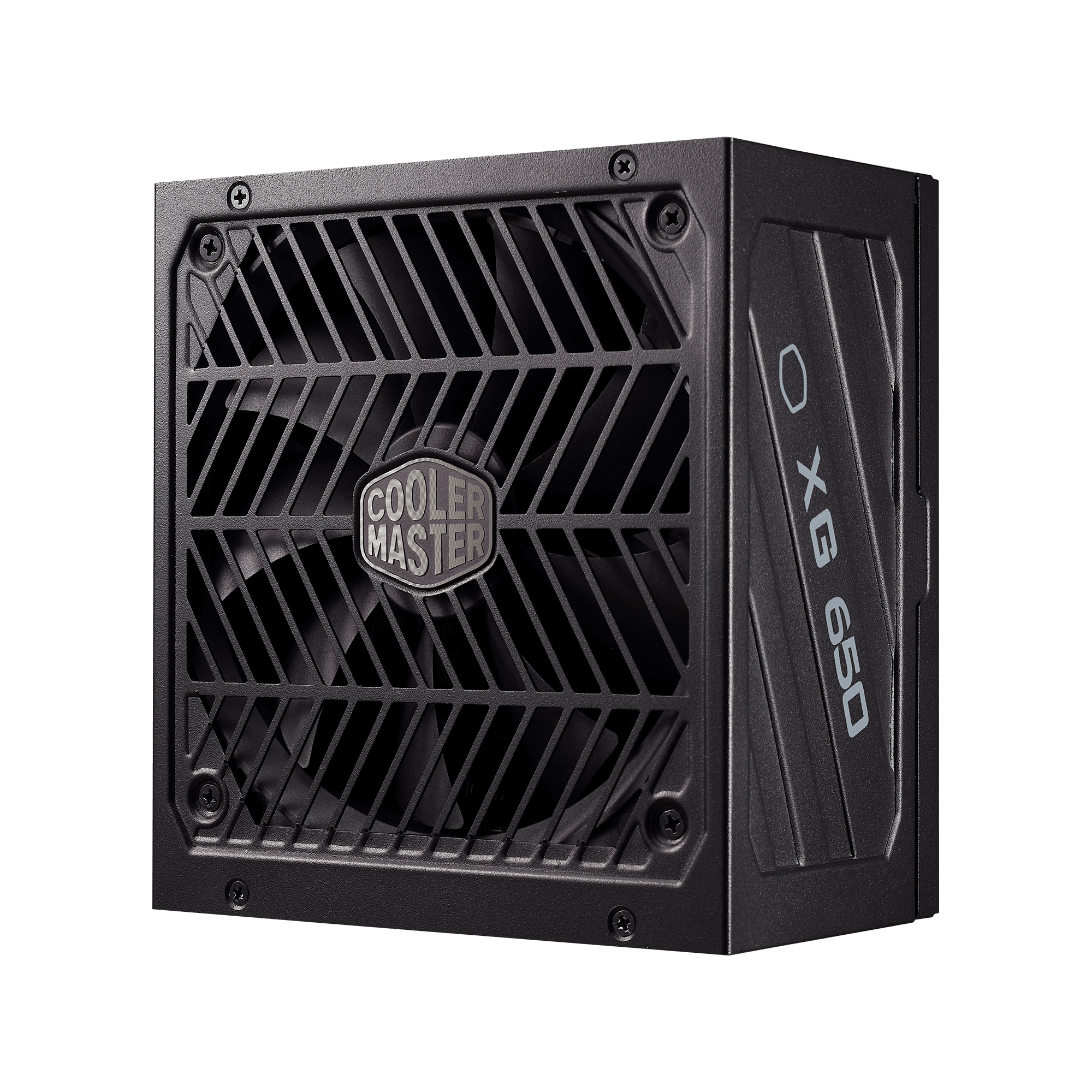

Full Modular 80 PLUS Platinum Power Supply with Smart Thermal Control Mode

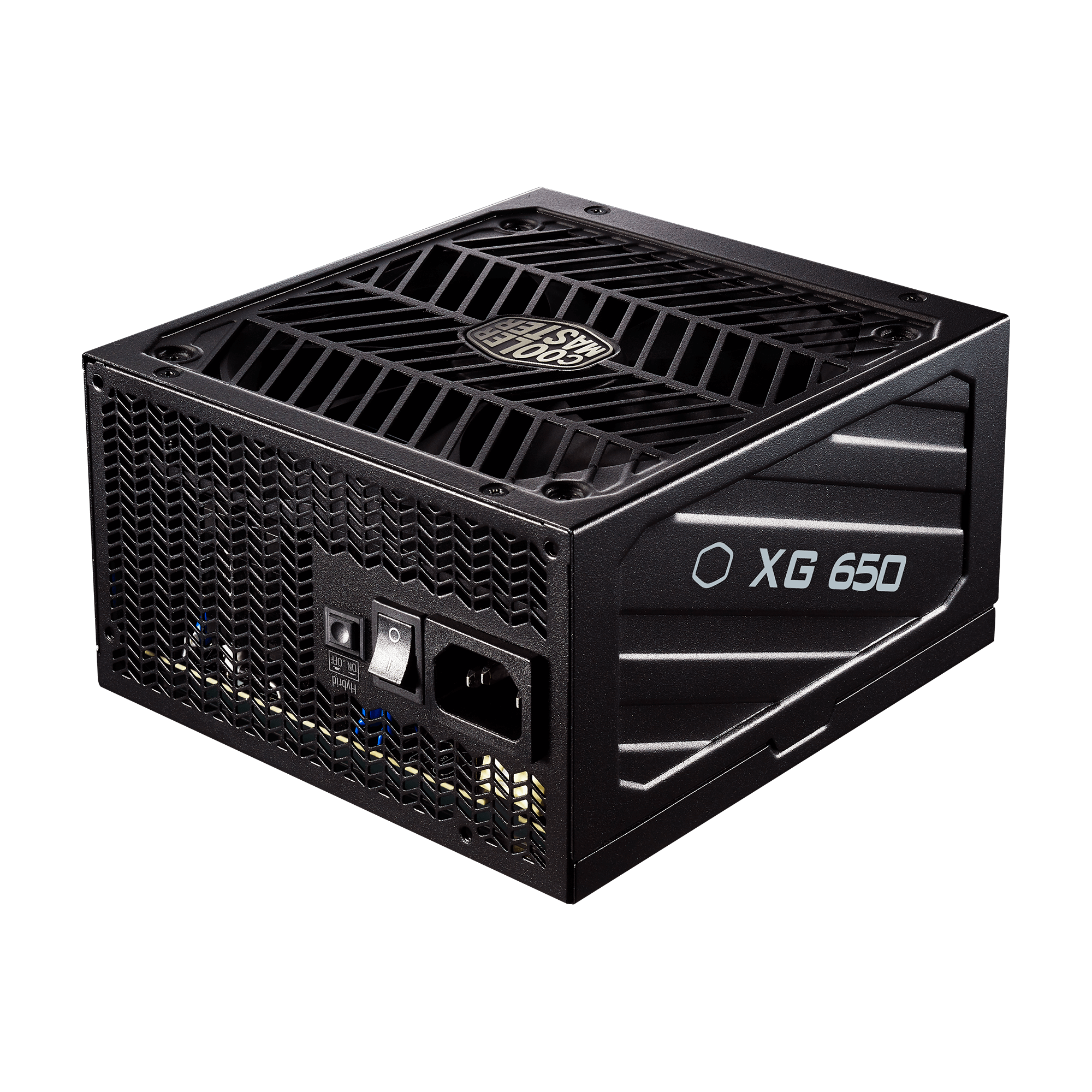

XG650 Platinum
• Intel ATX 12V Version 2.53
• 80 PLUS Platinum Certified

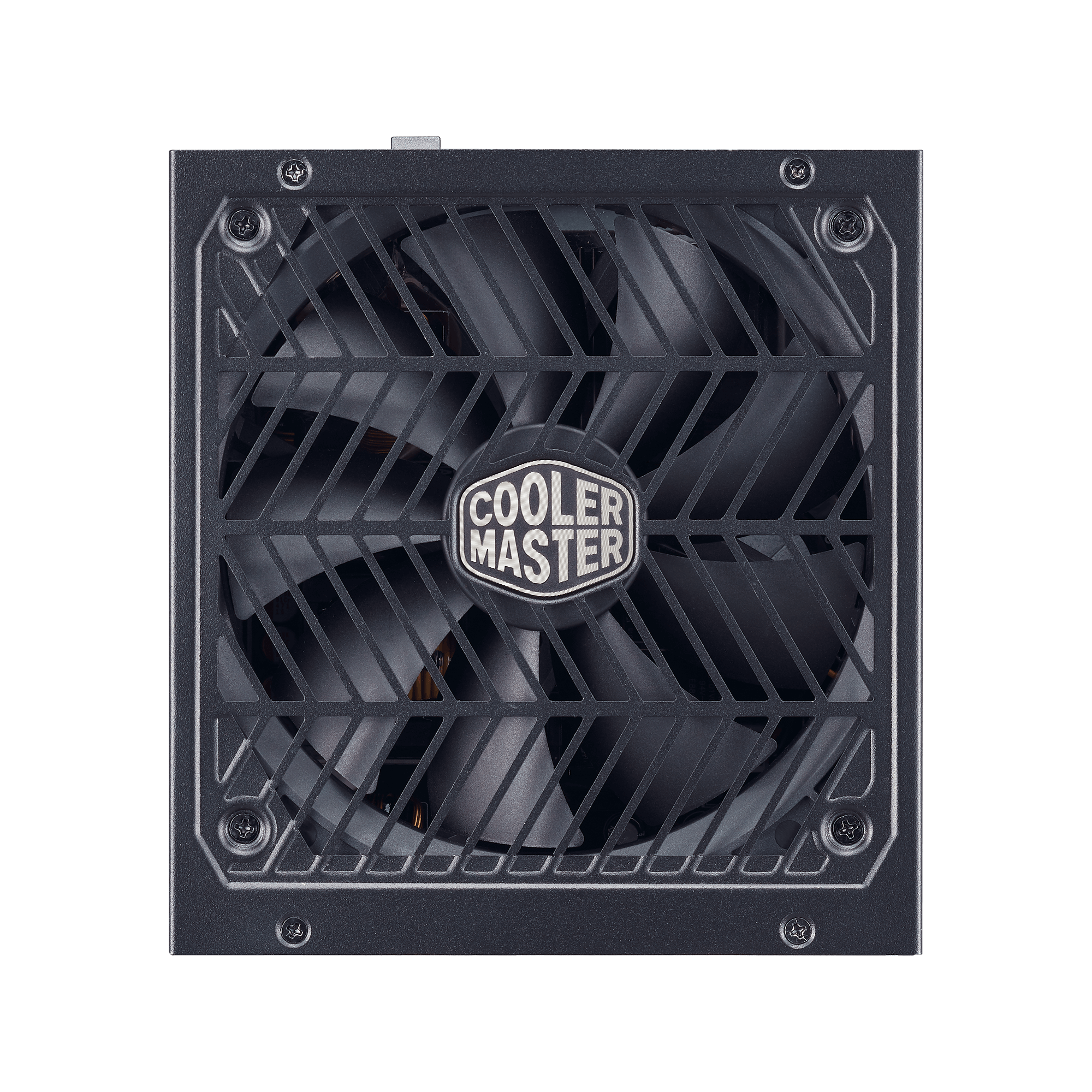

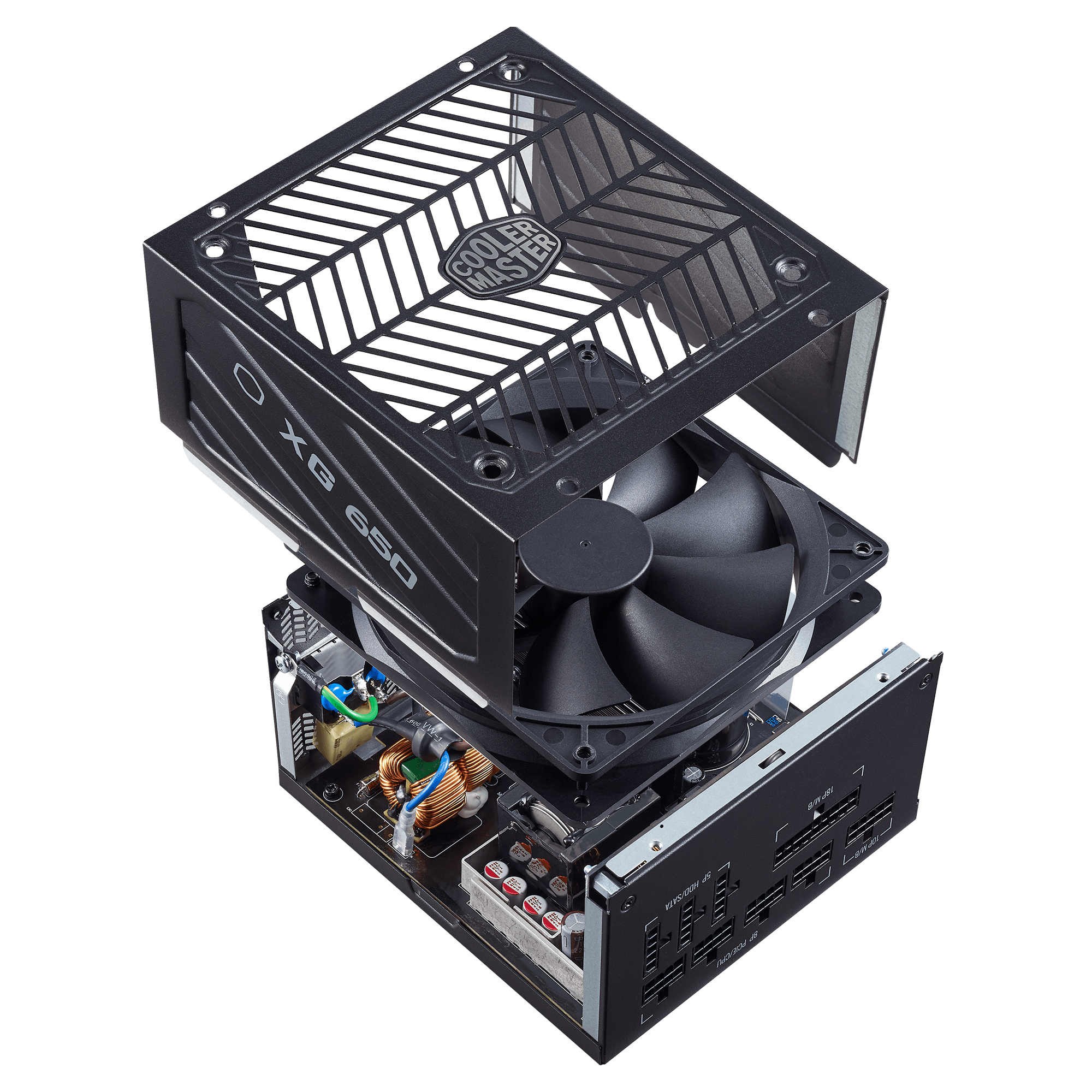

• Quiet 135mm Fan

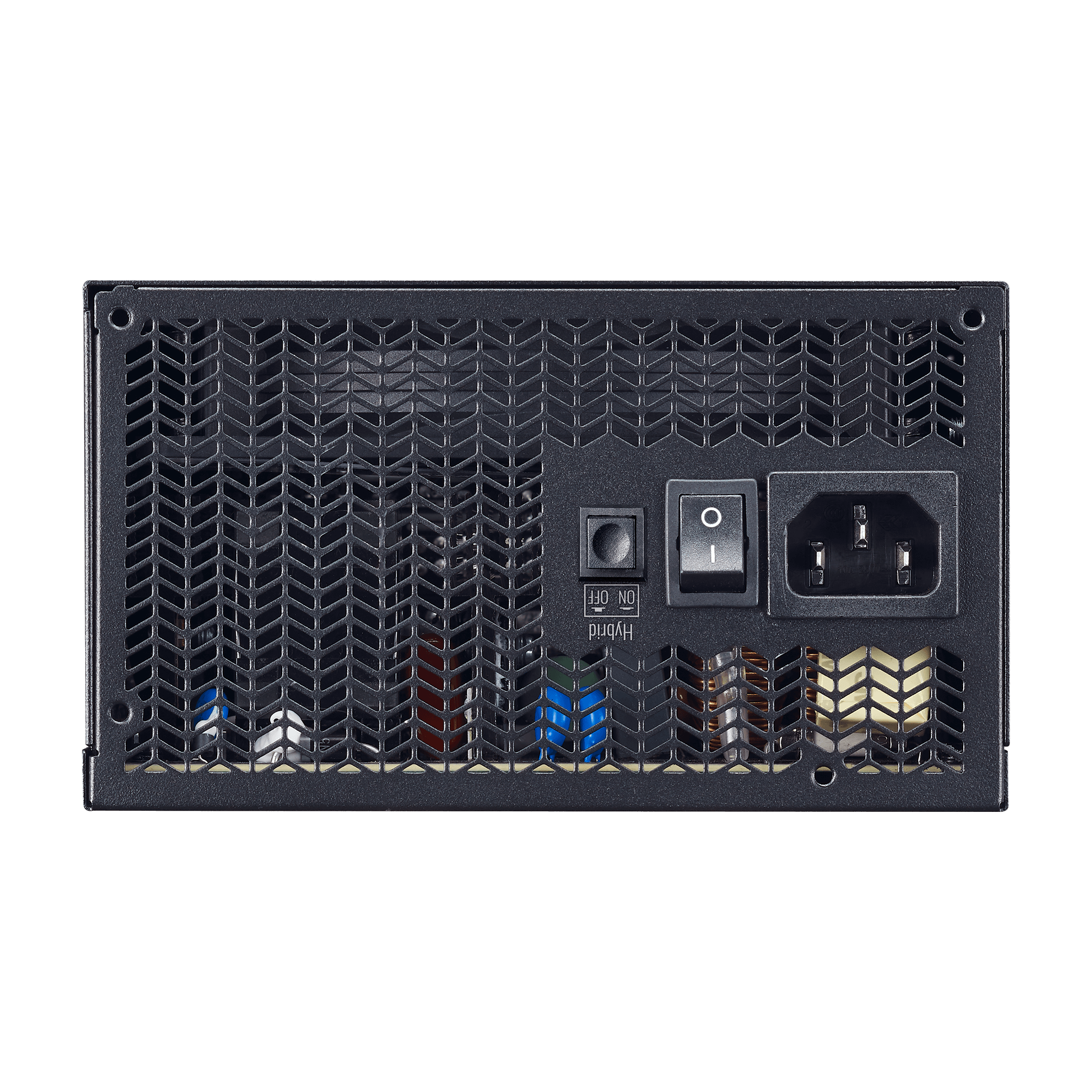

• Smart Thermal Control Mode with Hybrid Switch

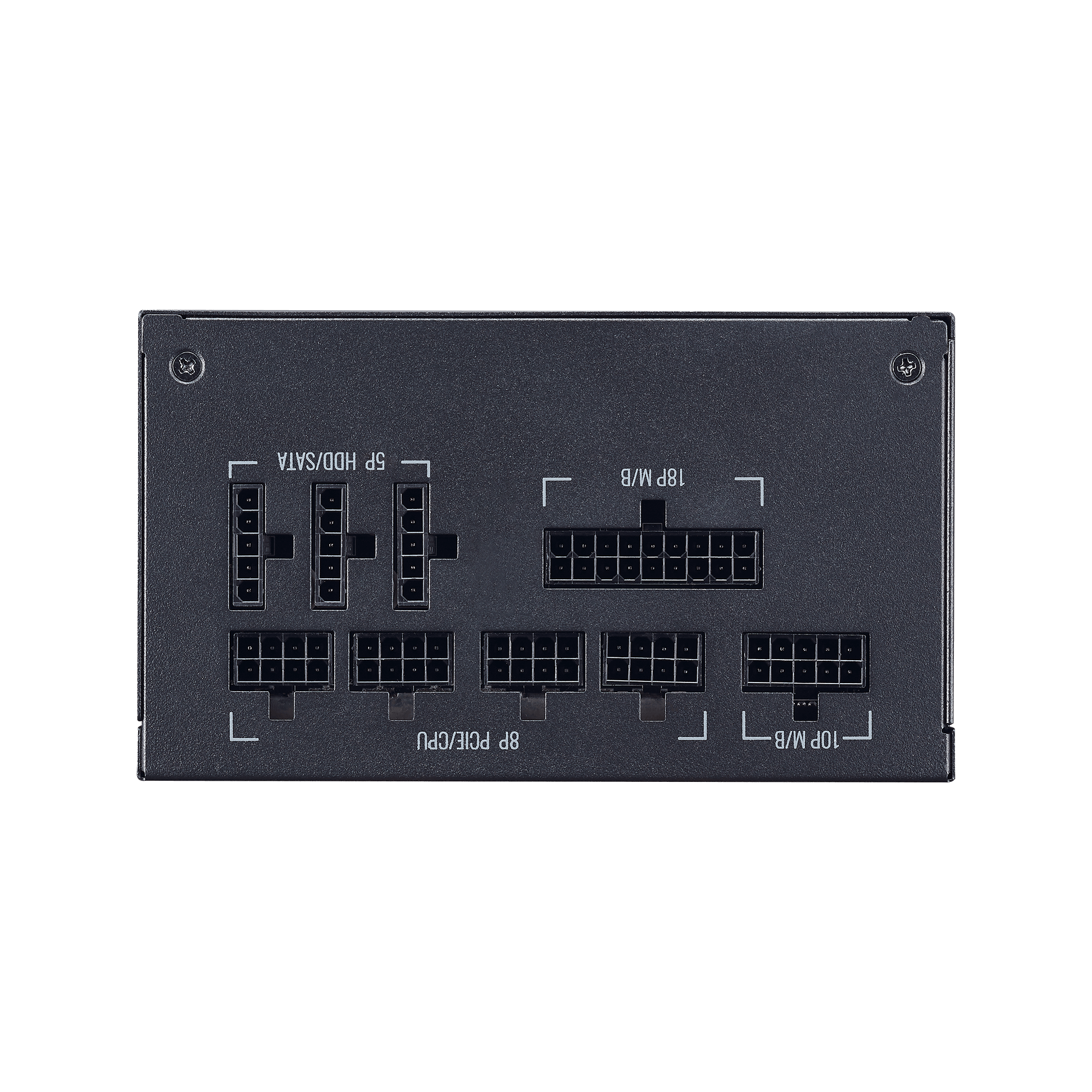

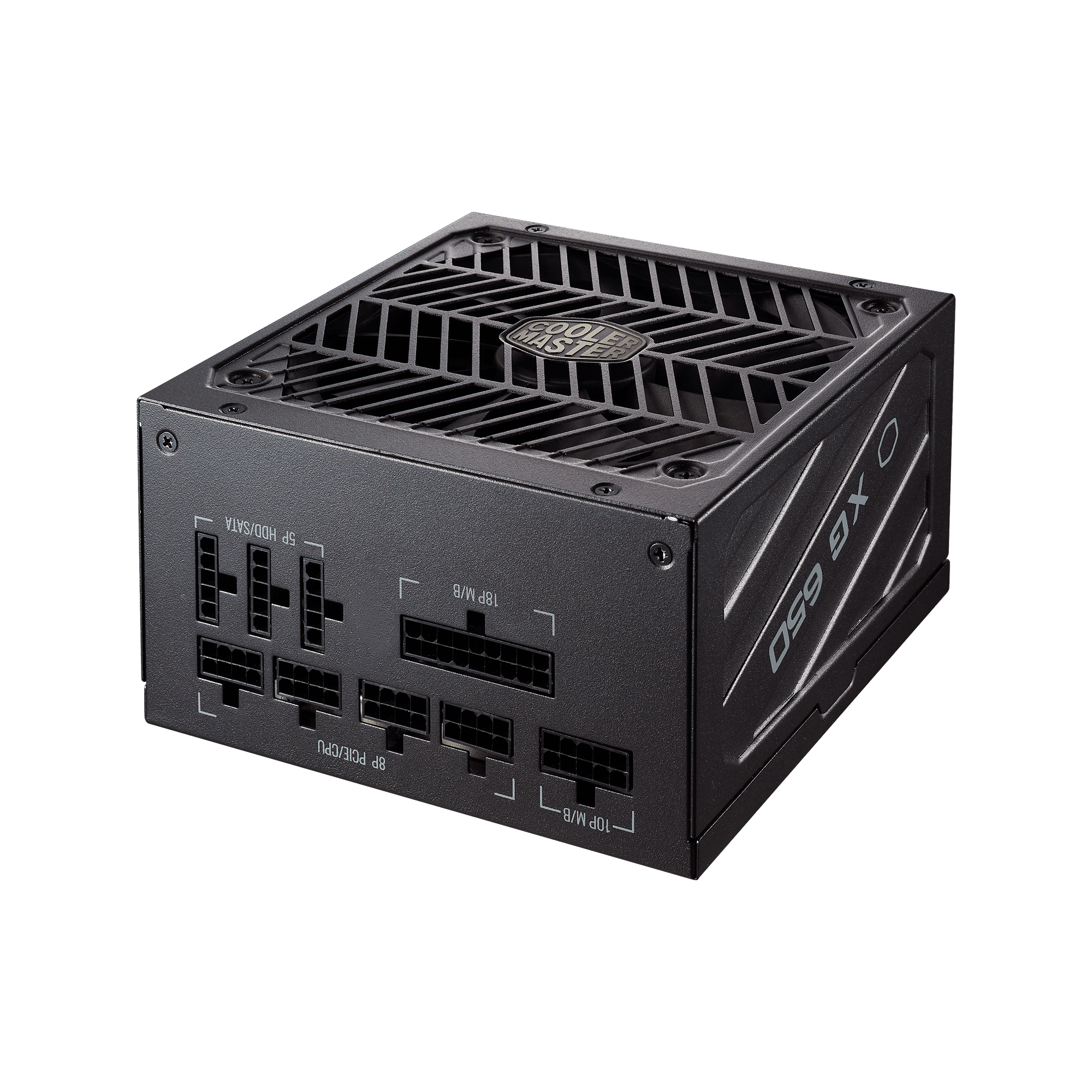

• Full-Modular Cabling
• 10-Year Warranty
- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- 80 PLUS Rating 80 PLUS Platinum
- EPS 8 Pin Connector 1
- Power Good Signal 100 - 150 ms
- Category 500 to 750W
- 80 Plus Efficiency Platinum
- MTBF >100,000 Hours
- Operating Temperature 0-50°C
- Fan Size 135mm
- SATA Connectors 8
- PCI-e 6+2 Pin Connectors 4
- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 4
- Protections OVP
- Protections OPP
- Protections SCP
- Protections UVP
- ATX Version Intel ATX 12V Ver. 2.53
- Protections OTP
- Protections OCP
- Input Current 8-4A
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Protections Surge and Inrush Protection
- Fan Speed 1800 RPM
- Regulatory CCC
- Series XG Series
- Regulatory CE
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Efficiency ≥ 92% @ Typical Load
- Regulatory BSMI
- Hold Up Time ≥ 20ms
- Regulatory TUV
- Noise Level @ 100% ≤ 25 dBA
- Regulatory UKCA
- Model MPG-6501-AFBAP-**
