80 PLUS Standard 230V EU Certified Power Supply

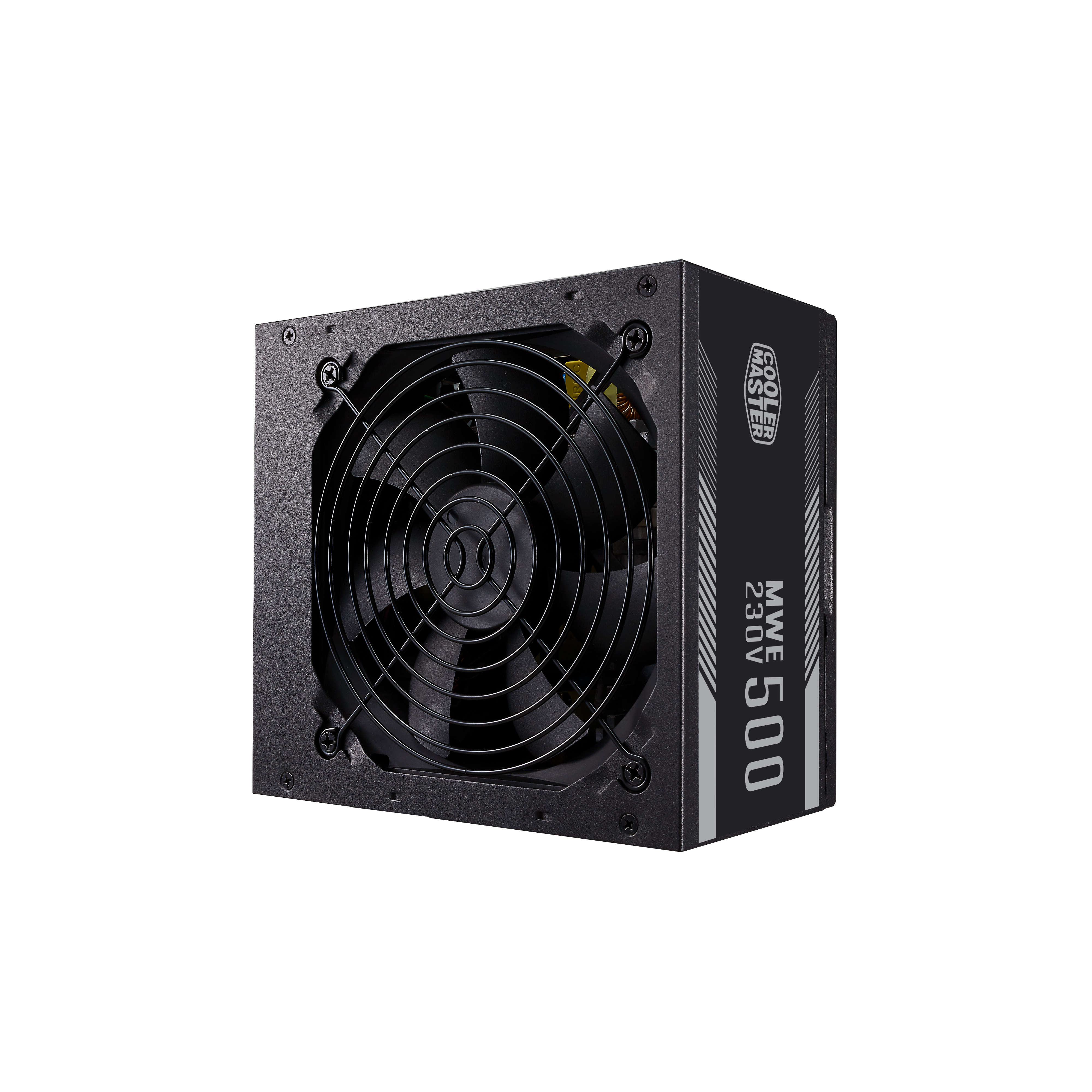

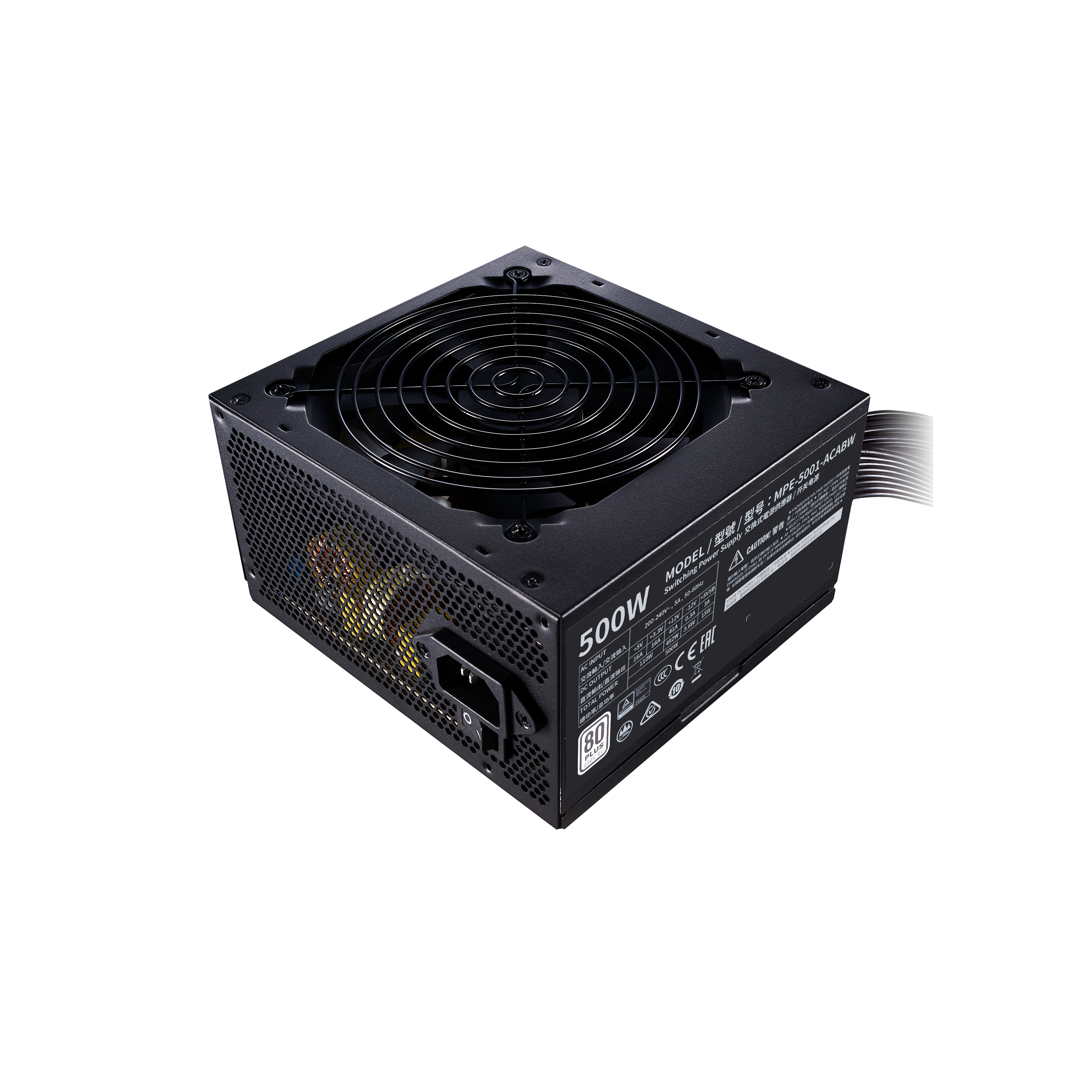

MWE 500 White 230V - V2
80 PLUS Standard 230V EU Certified

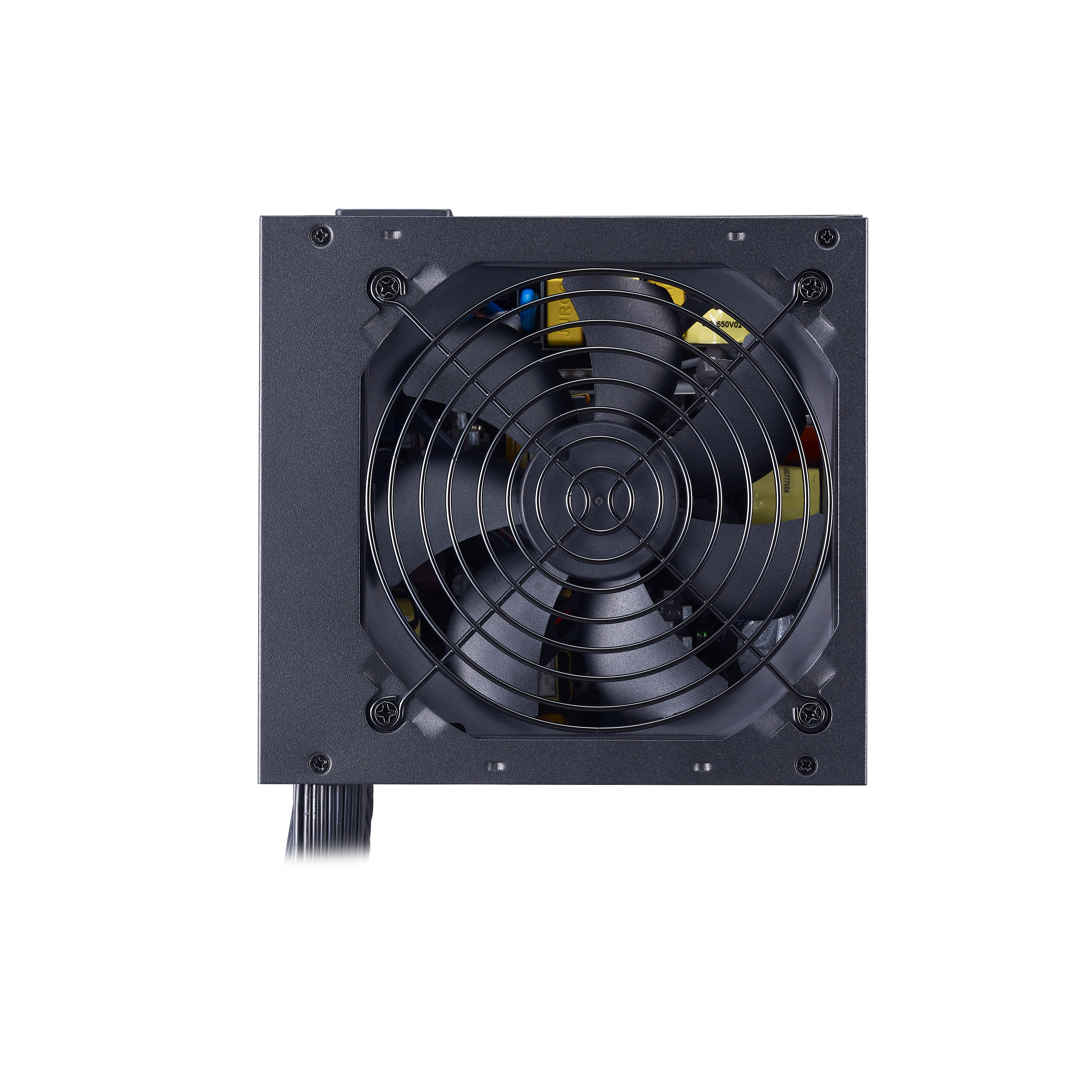

120mm HDB Fan
DC-to-DC Technology
Single +12V Rail

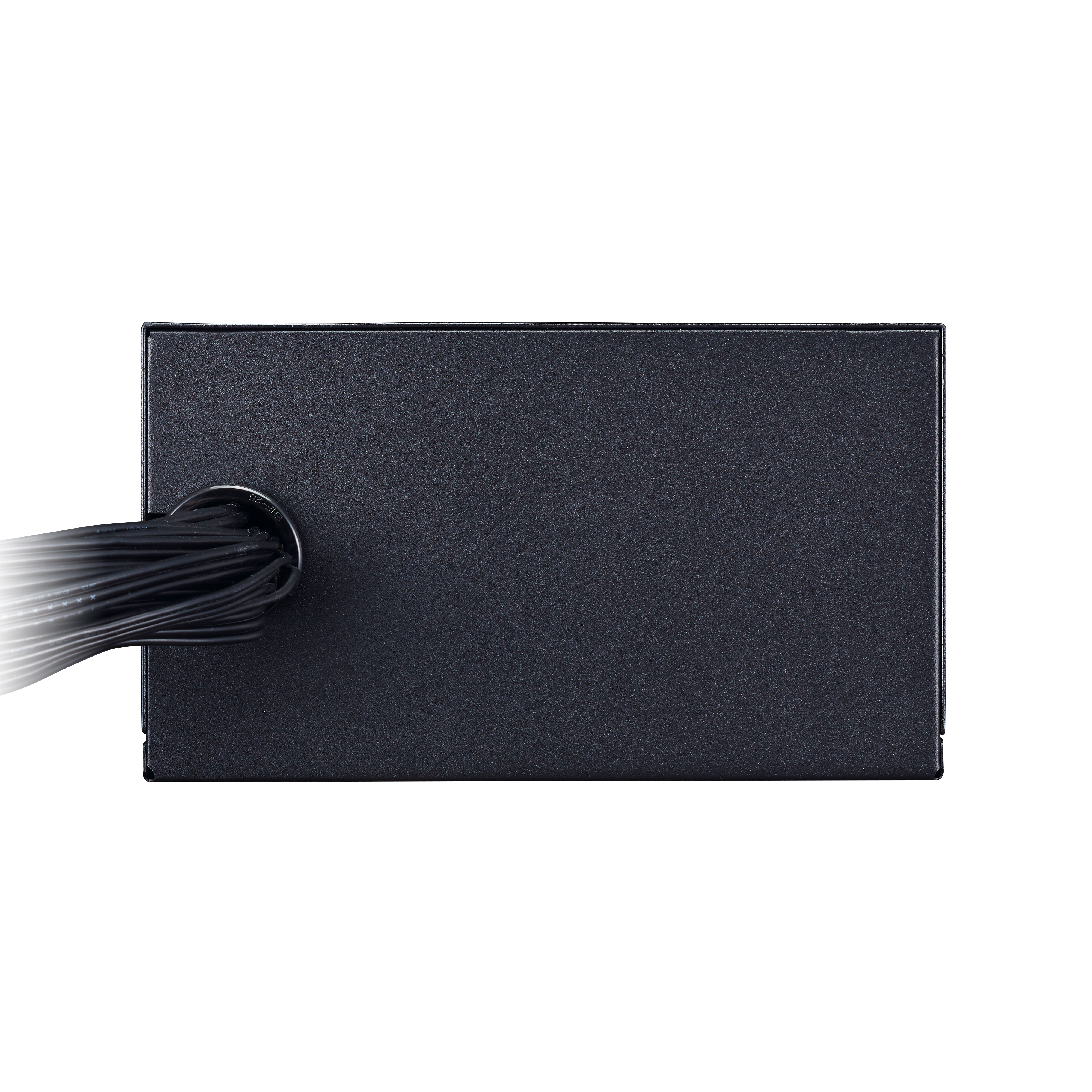

Flat Black Cables
- PFC Active PFC
- ErP 2014 Lot 3 Yes
- Input Frequency 50-60Hz
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- Fan Size 120mm
- Power Good Signal 100 - 500 ms
- MTBF >100,000 Hours
- Category 500 to 750W
- Modular Non Modular
- Fan Bearing HDB
- Efficiency 85% Typically
- 80 Plus Efficiency White
- 80 PLUS Rating 80 PLUS Standard 230V EU
- Fan Speed 1500 RPM
- Operating Temperature 40°C
- PCI-e 6+2 Pin Connectors 2
- SATA Connectors 6
- Peripheral 4 Pin Connectors 3
- Protections OVP
- ATX Version ATX 12V V2.52
- Input Current 5A
- Series MWE White Series
- Protections OPP
- Protections SCP
- Dimensions (L x W x H) 140 x 150 x 86 mm
- Hold Up Time >14ms at 100% Full Load@230Vac
- Protections UVP
- Protections OTP
- Noise Level @ 100% 31.0 dBA
- Noise Level @ 20% 11.77 dBA
- Noise Level @ 50% 18.3 dBA
- Regulatory CCC
- Input Voltage 200-240Vac
- Regulatory CE
- Regulatory TUV-RH
- Regulatory RCM
- Regulatory EAC
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Regulatory CB

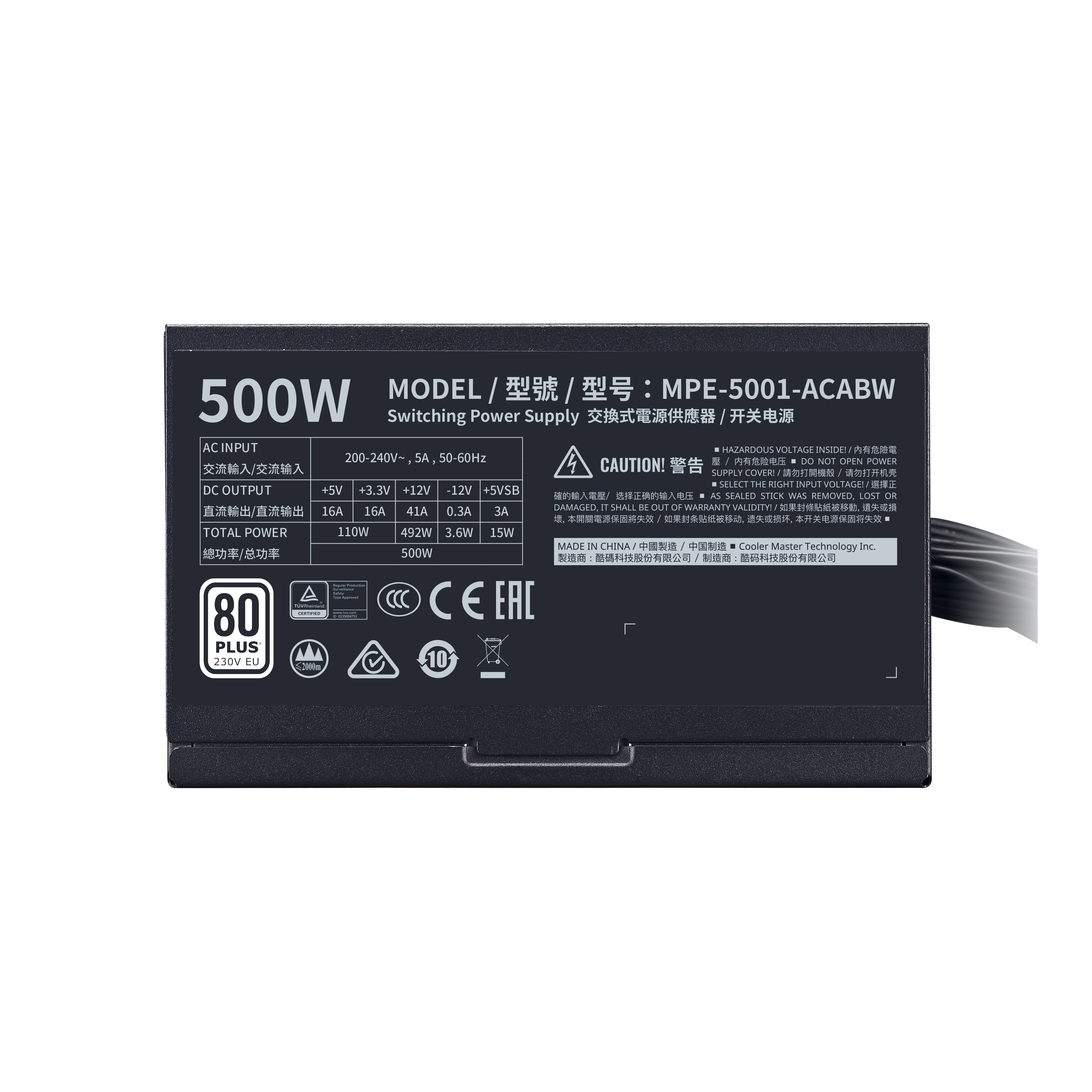

- Model MPE-5001-ACABW
