ATX 3.0 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit

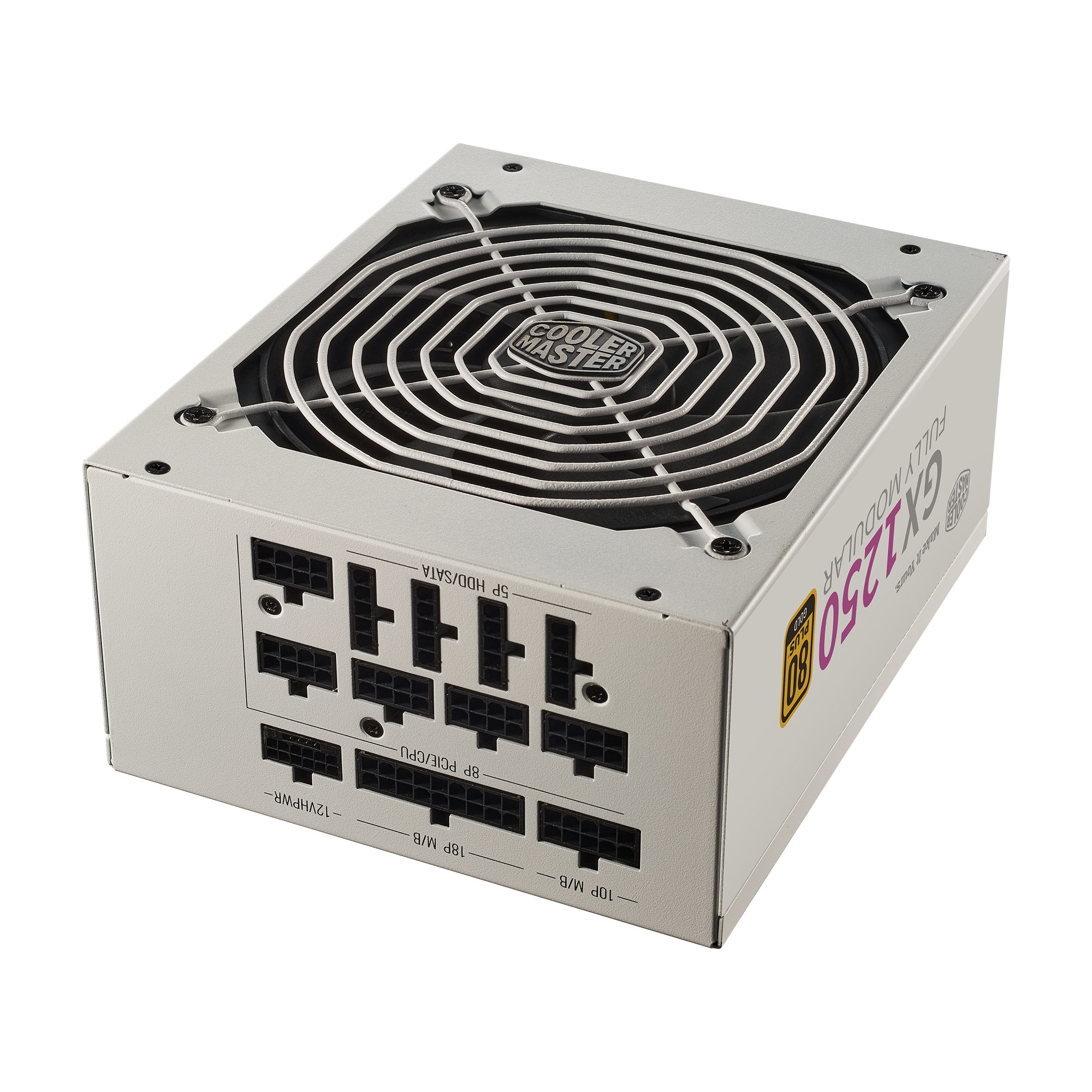

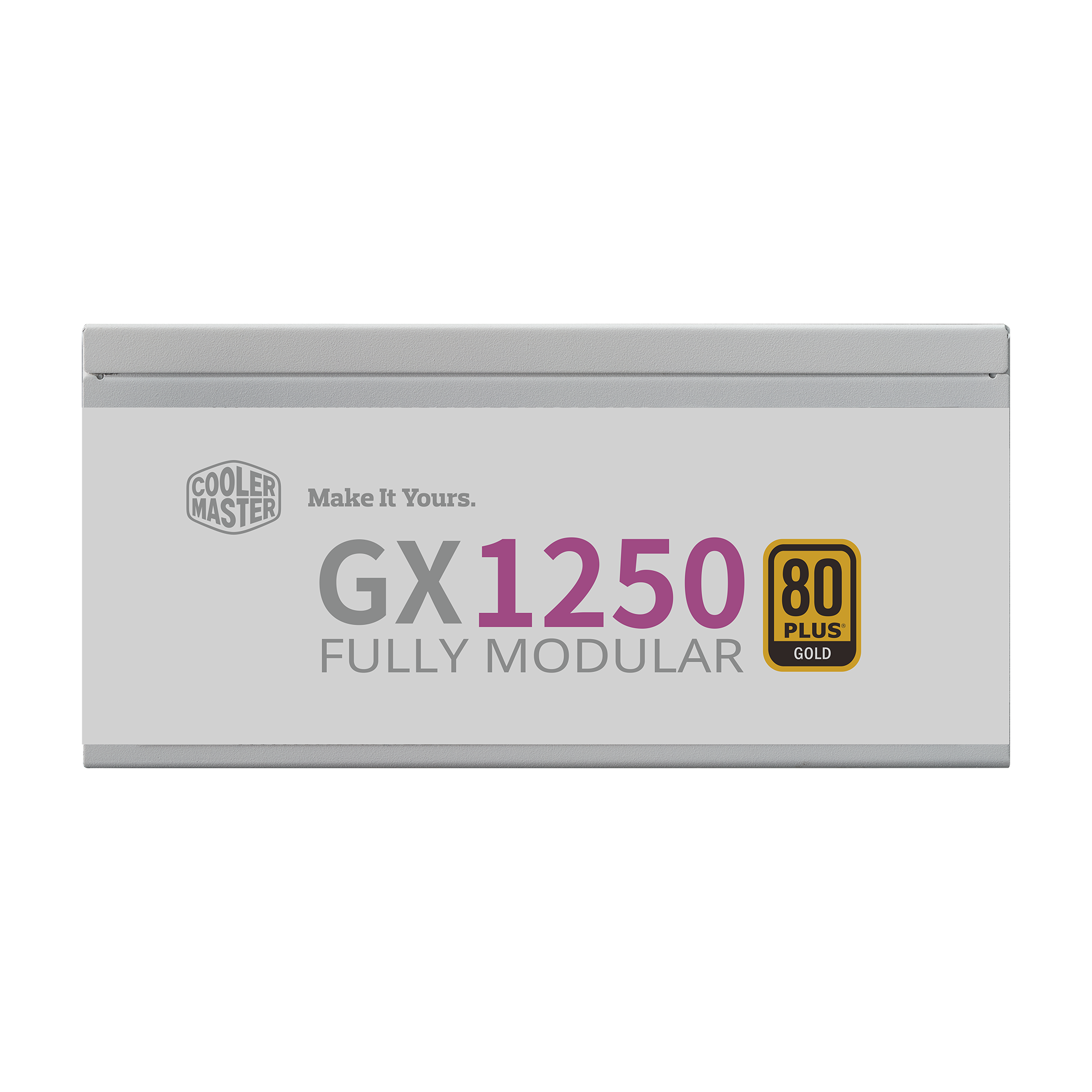

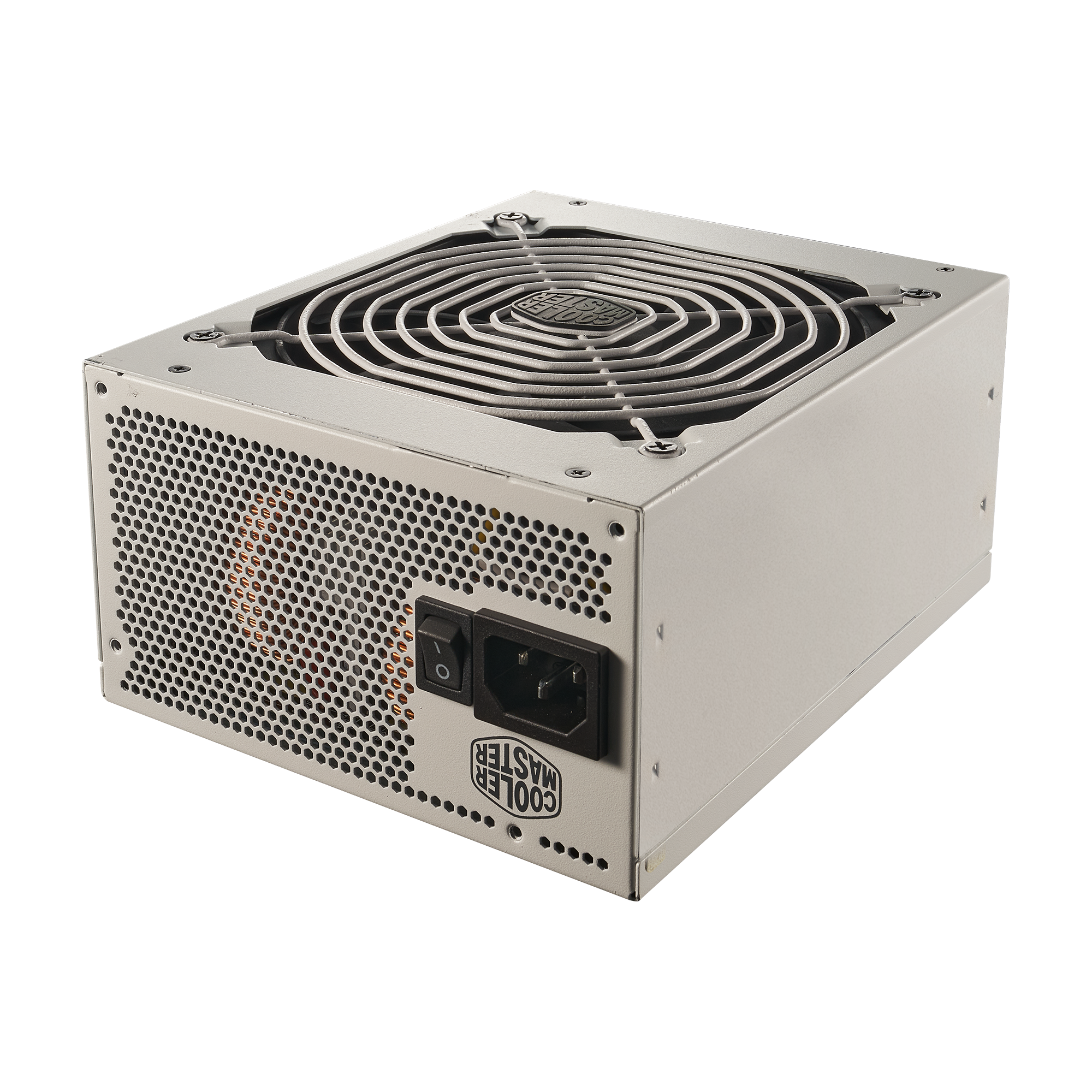

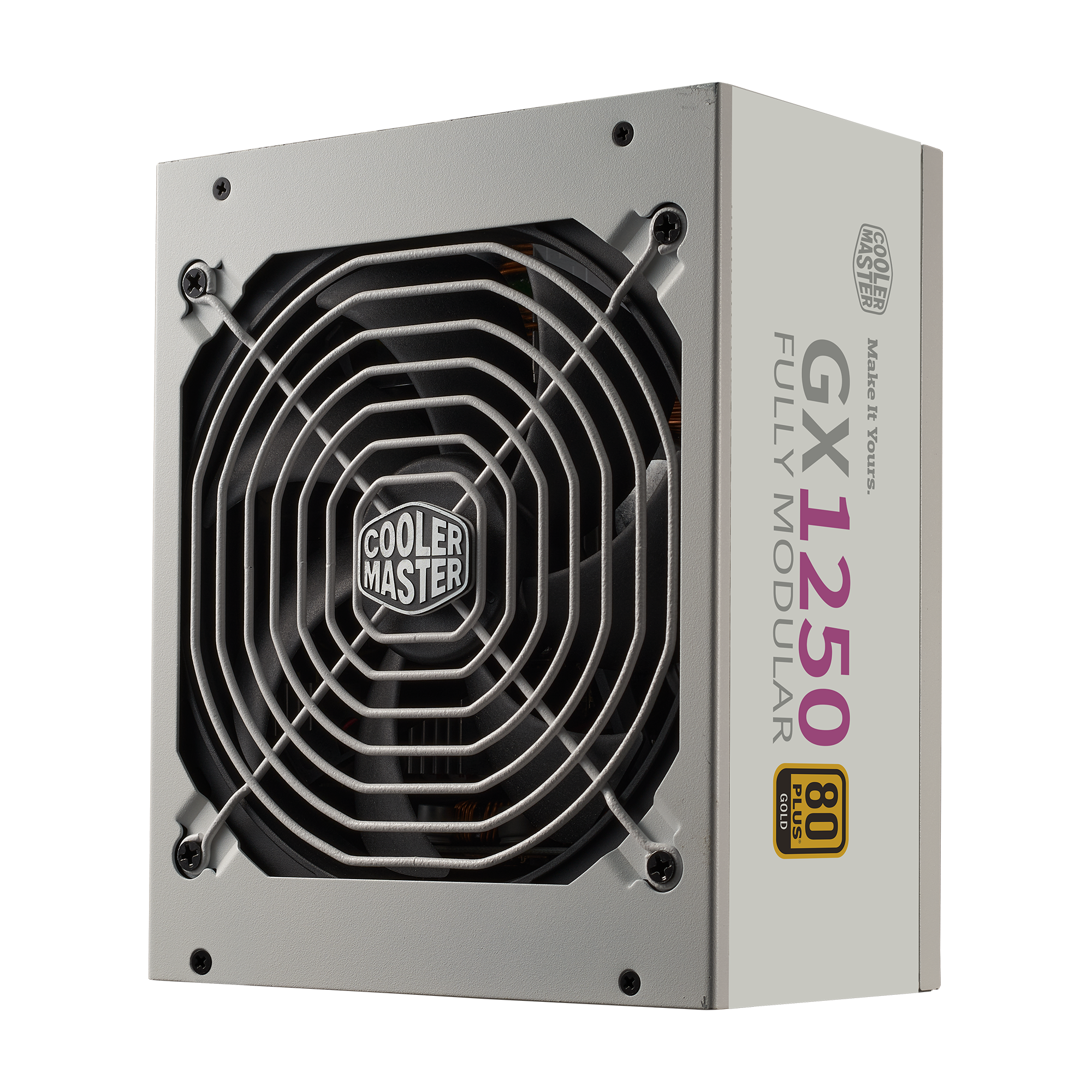

GX Gold 1250 ATX 3.0 White Edition
80 PLUS Gold Efficiency

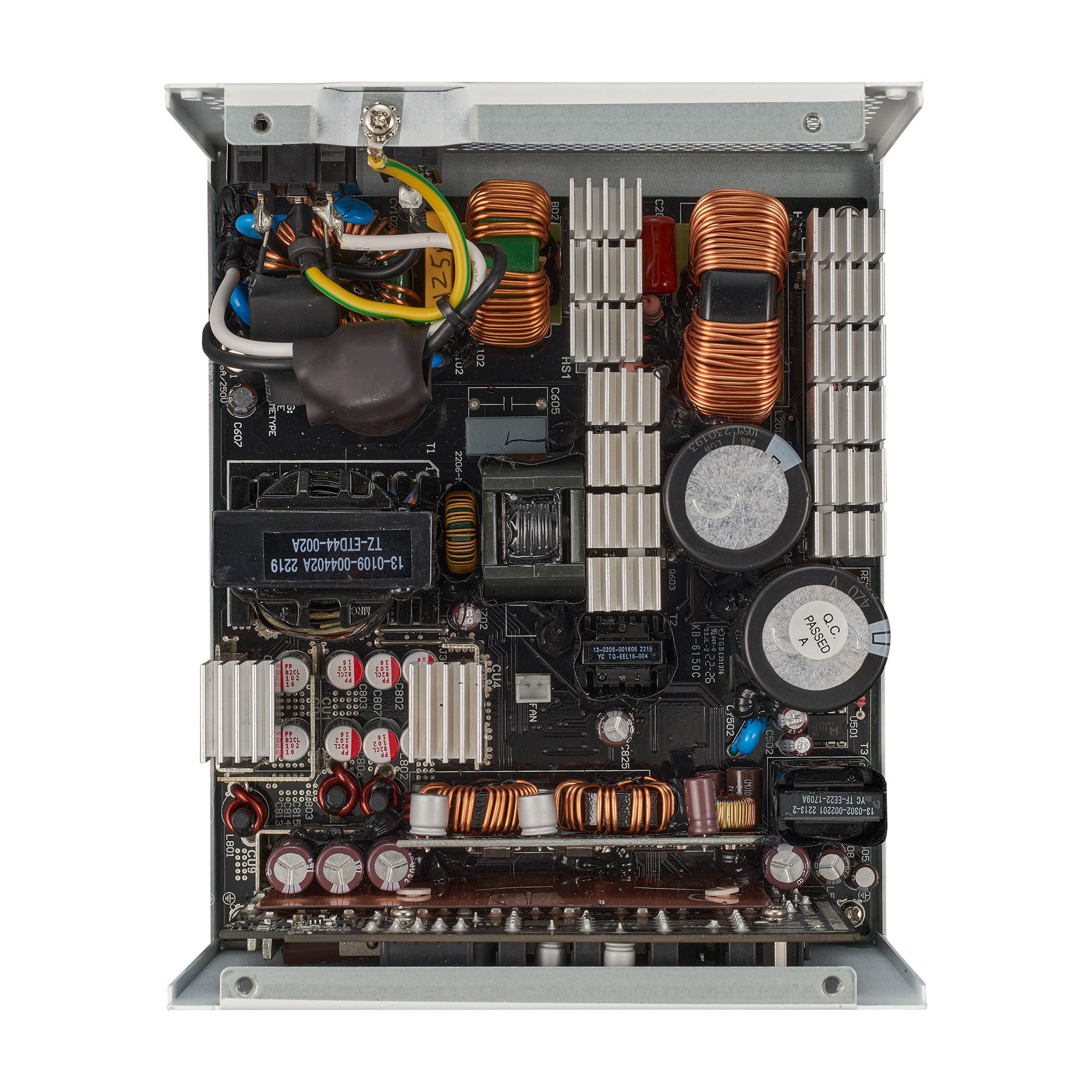

High-quality Japanese capacitors

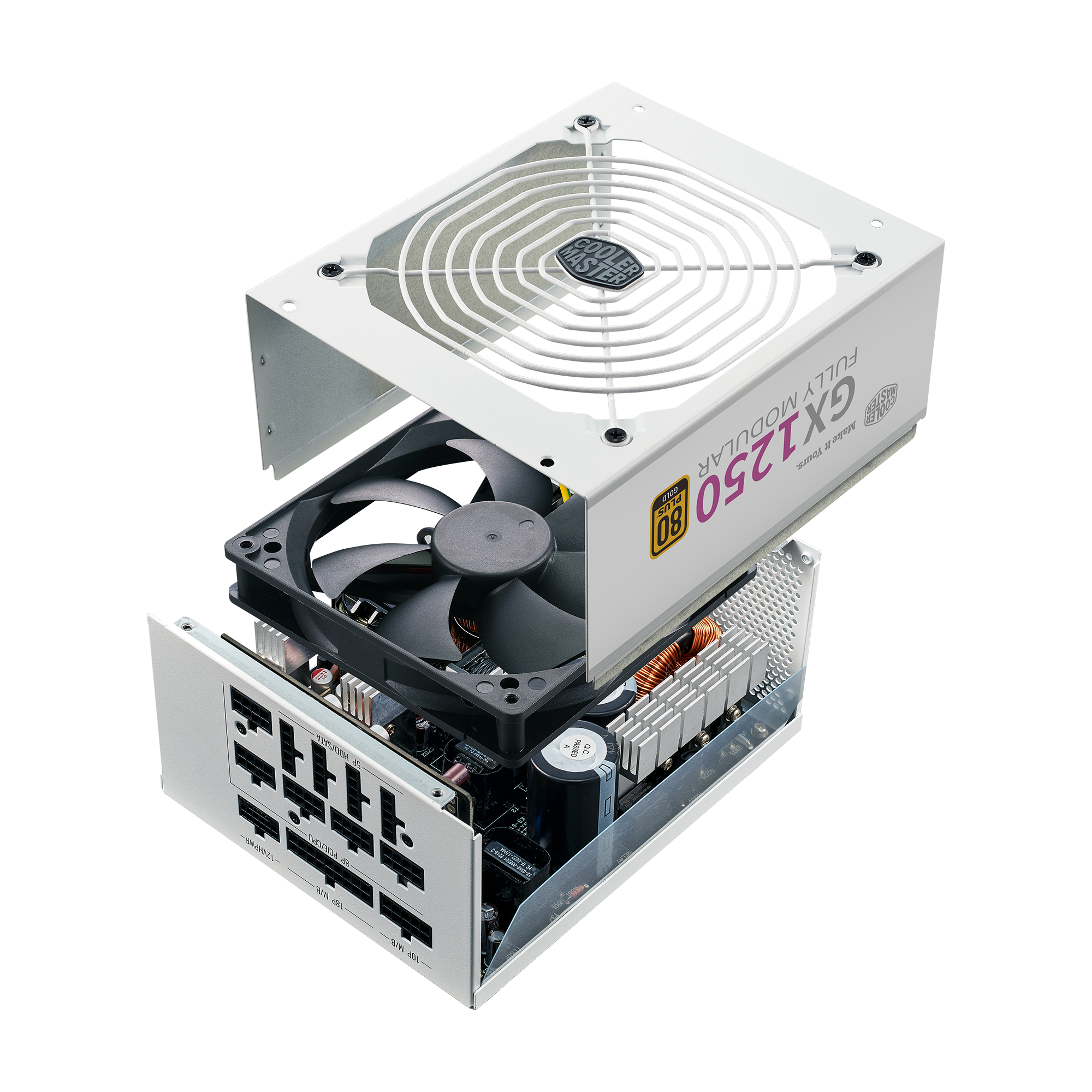

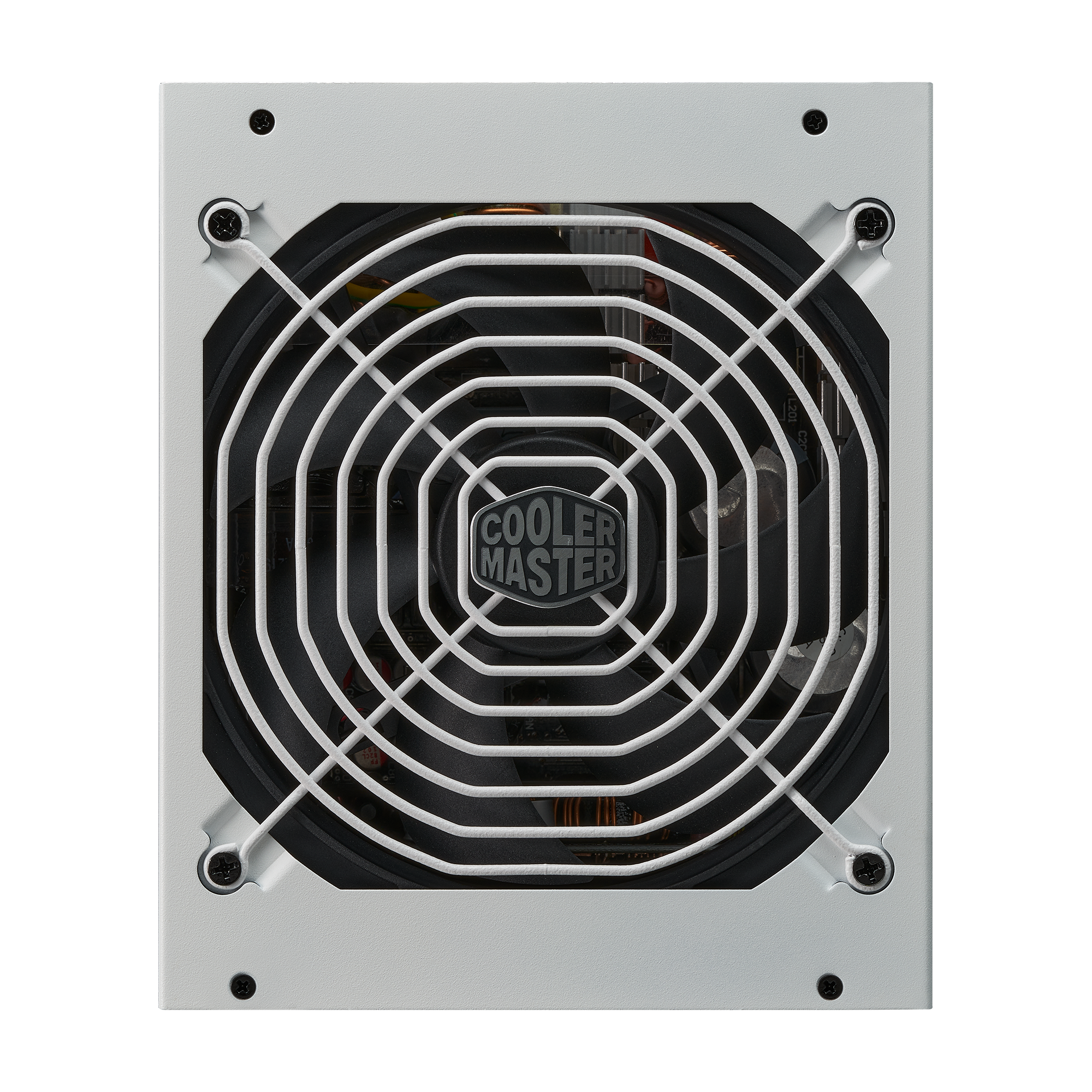

140mm Silent Fan
High Temperature Resilience

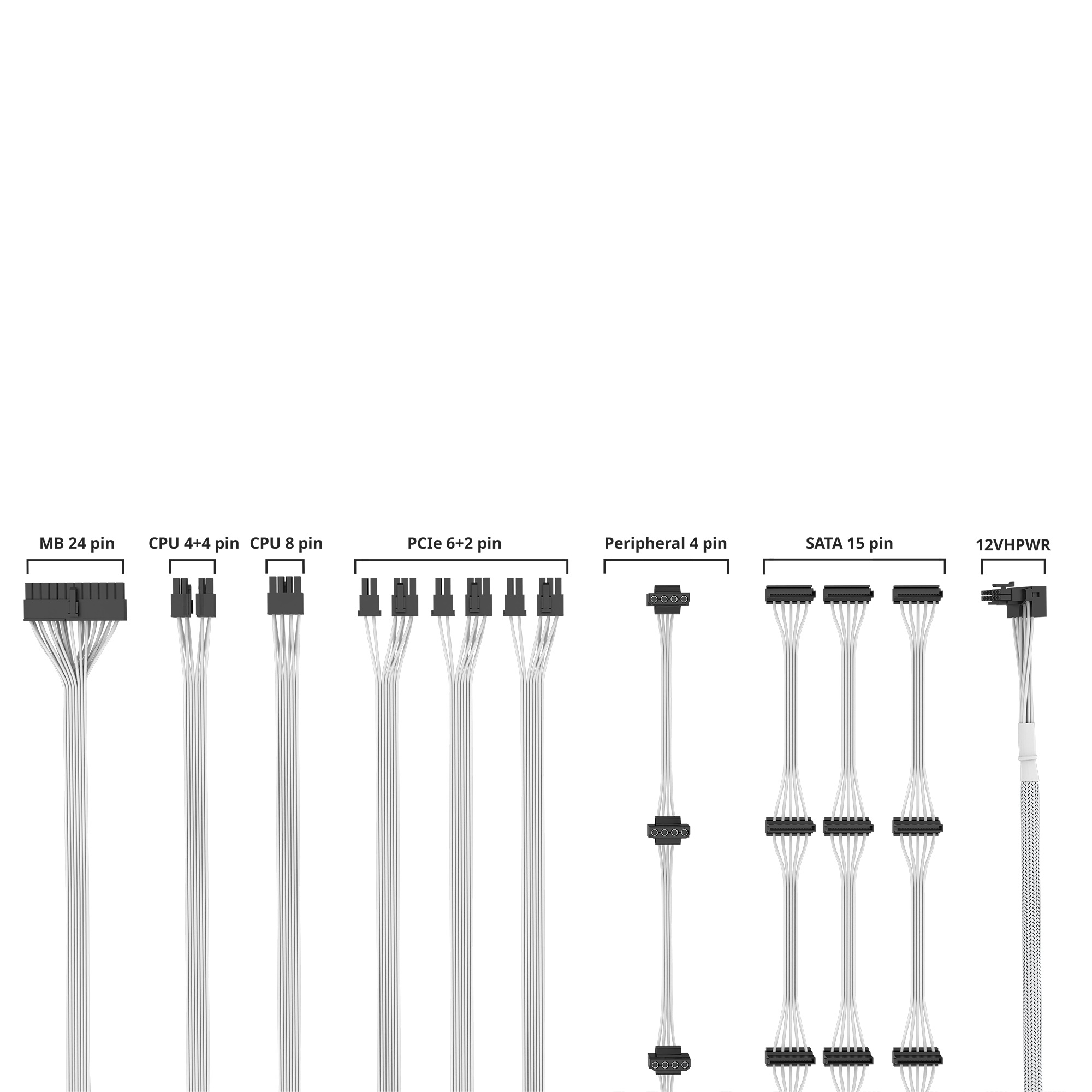

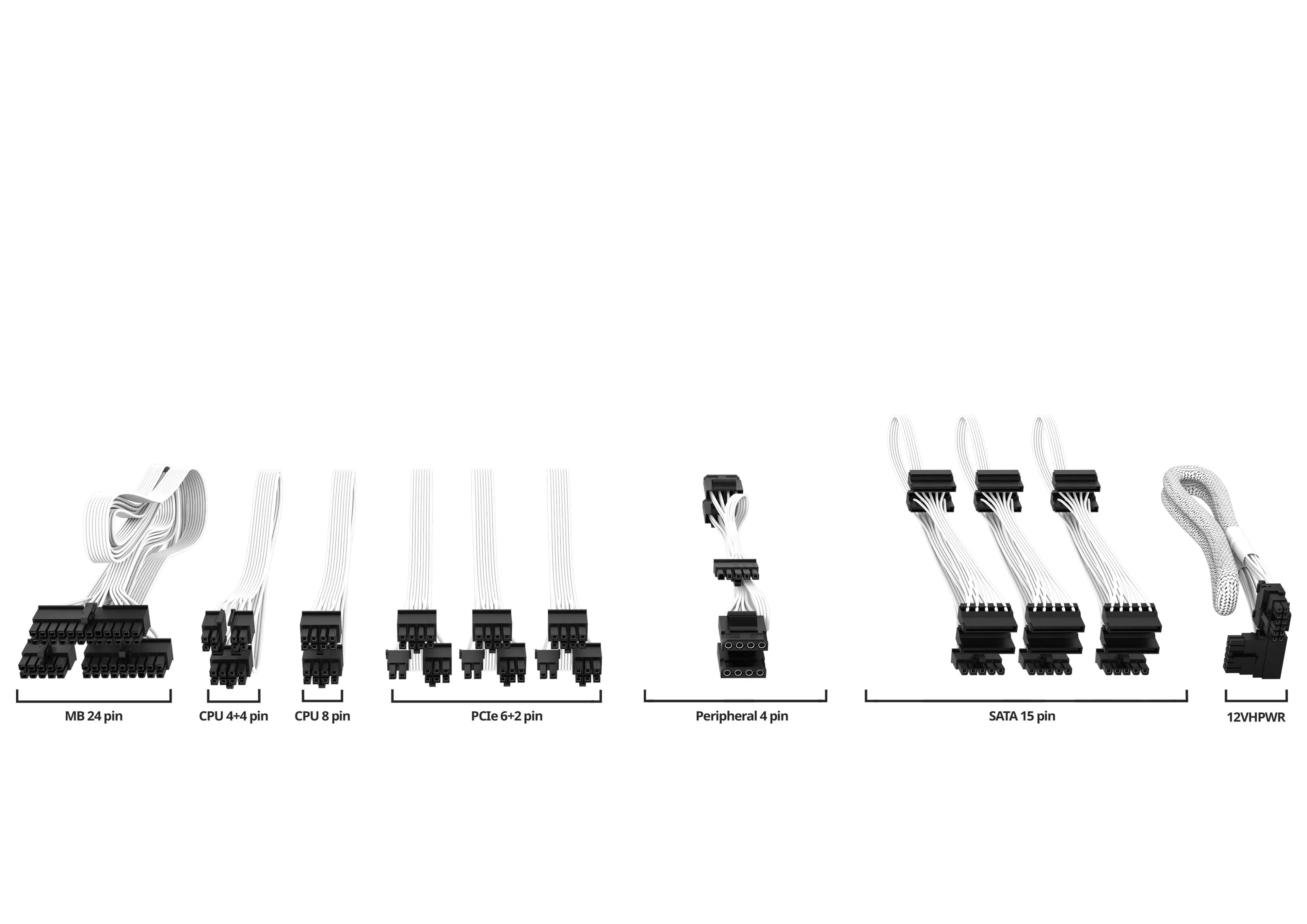

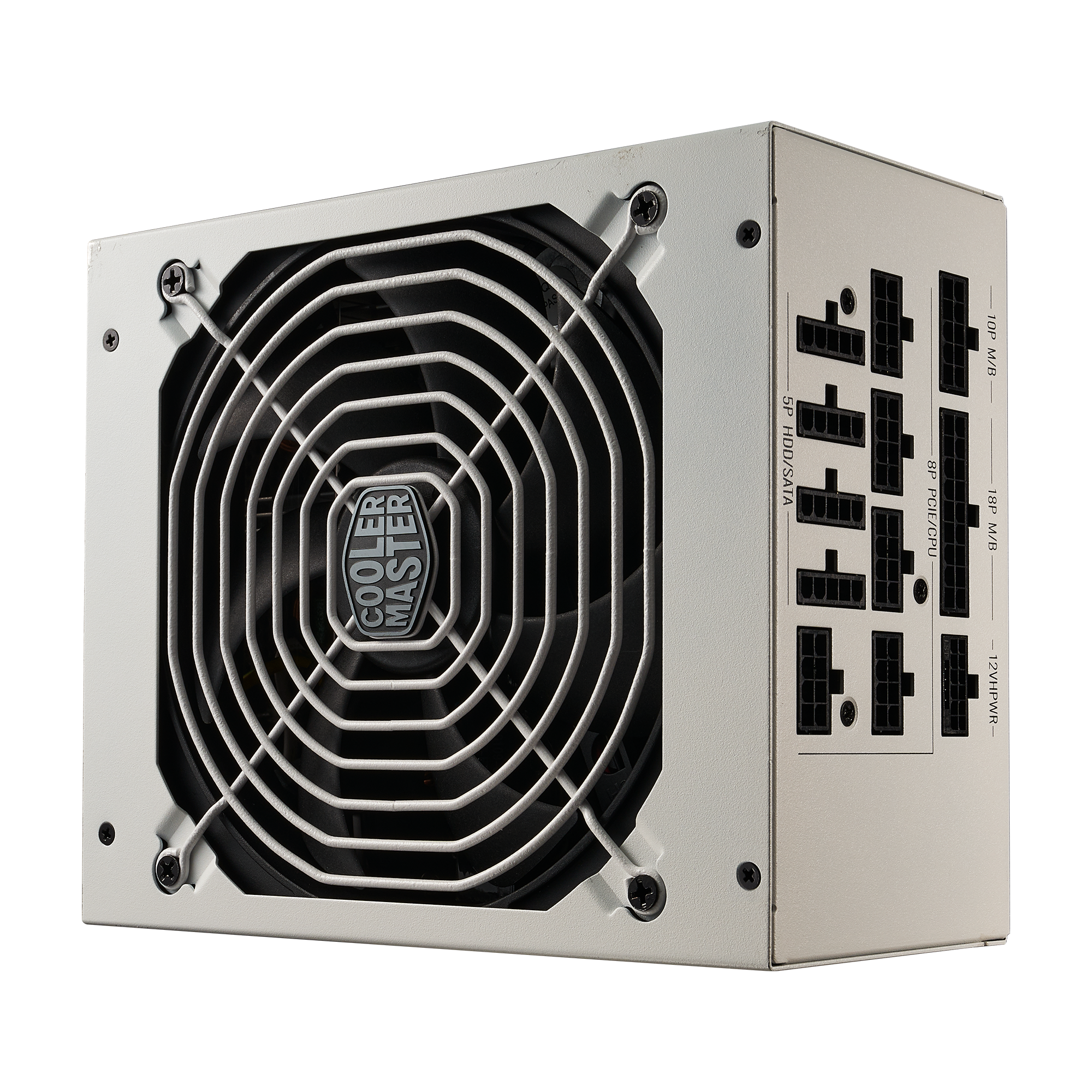

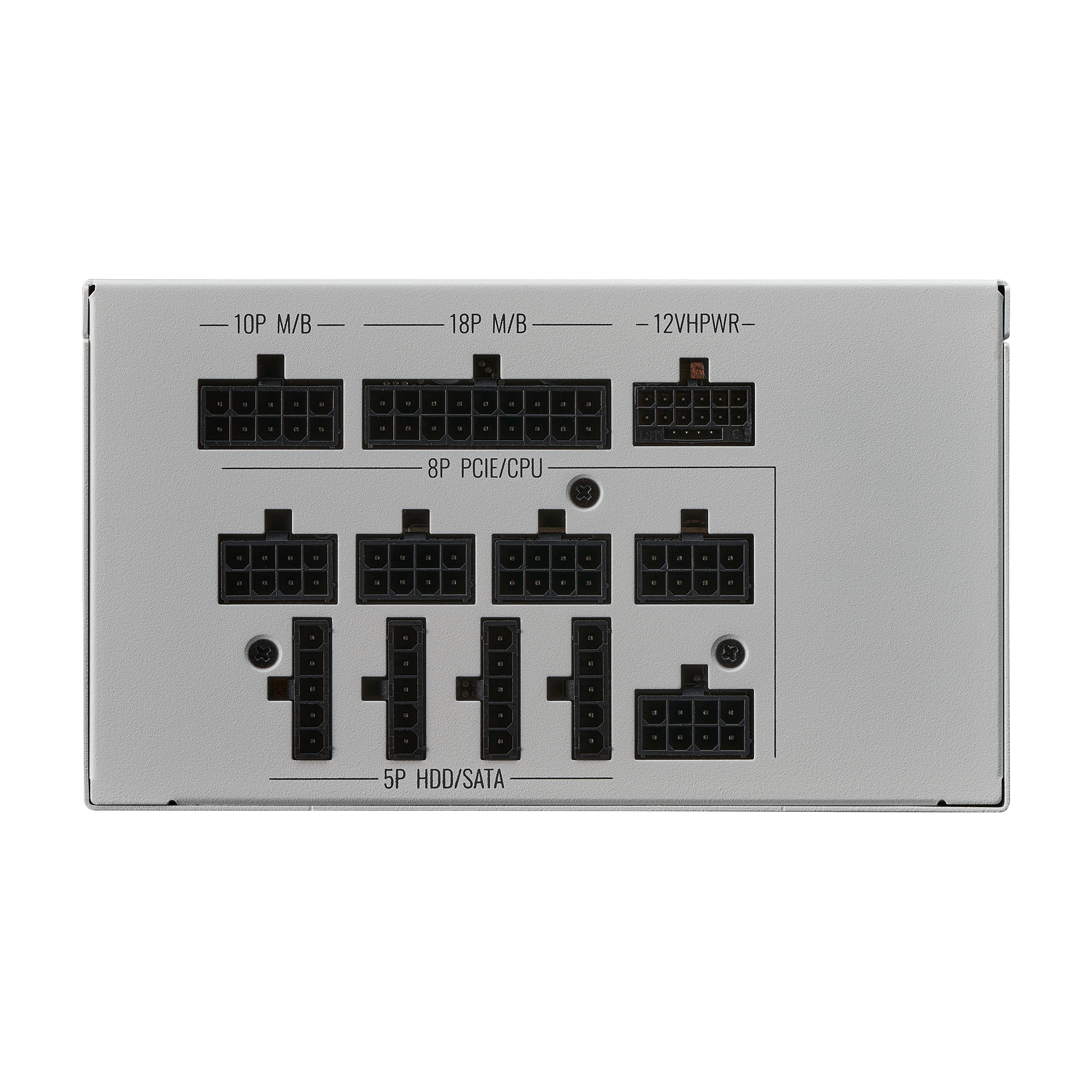

Fully Modular Cabling
10 Year Warranty
- Category Above 750W
- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- Fan Bearing FDB
- Power Good Signal 100 - 150 ms
- 12VHPWR Connector 1
- 80 PLUS Rating 80 PLUS Gold
- MTBF >100,000 Hours
- 80 Plus Efficiency Gold
- SATA Connectors 12
- Operating Temperature 0-50°C
- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 4
- Protections OVP
- Fan Size 140mm
- Protections OPP
- Protections SCP
- PCI-e 6+2 Pin Connectors 3
- Protections UVP
- Protections OTP
- Protections OCP
- ATX Version ATX Rev. 3.0
- Protections Inrush Protection
- Series GX Series
- Regulatory CCC
- Regulatory CE
- Regulatory RCM
- Efficiency ≥90% @ Typical Load
- Regulatory EAC
- Dimensions (L x W x H) 180 x 150 x 86 mm
- Regulatory cTUVus
- Regulatory FCC
- Regulatory BSMI
- Input Current 15-7A
- Regulatory TUV
- Hold Up Time ≥16ms at 100% Load
- Regulatory BIS
- Regulatory UKCA

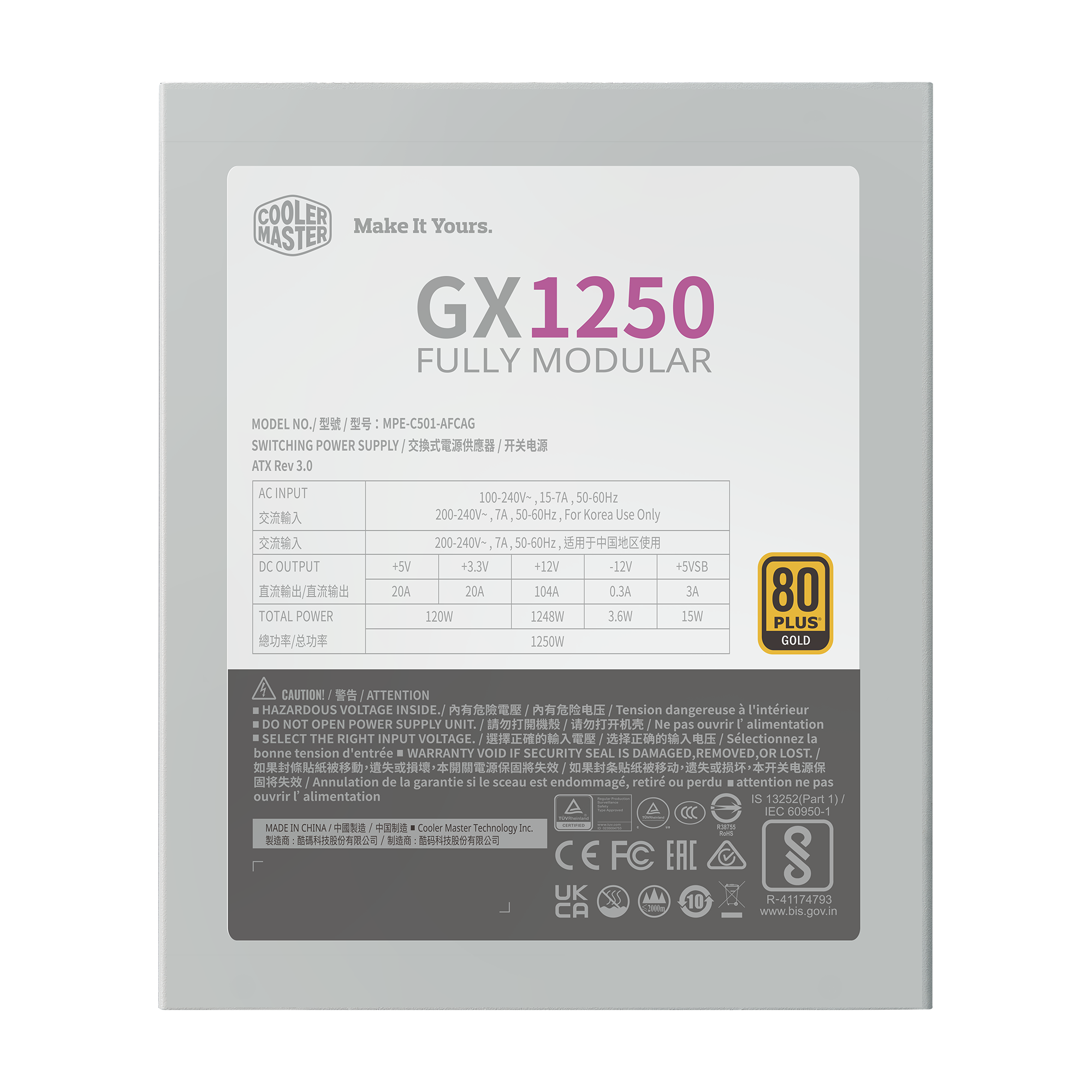

- Model MPE-C501-AFCAG-3G
