Koeler, stiller, sterker

HAF II 500

Toonaangevende, ruisgenormaliseerde koelprestaties

Beter gebalanceerde in- en uitlaatarchitectuur

Gesplitste indeling voor verbeterde luchtstroom​

MasterRail multifunctioneel montagesysteem​

Ondersteunt veelzijdige GPU-configuraties

INDUSTRY-LEADING NOISE NORMALIZED COOLING PERFORMANCE

HAF II 500 is engineered to deliver lower component temperatures without increasing system noise, redefining what an airflow case can achieve.

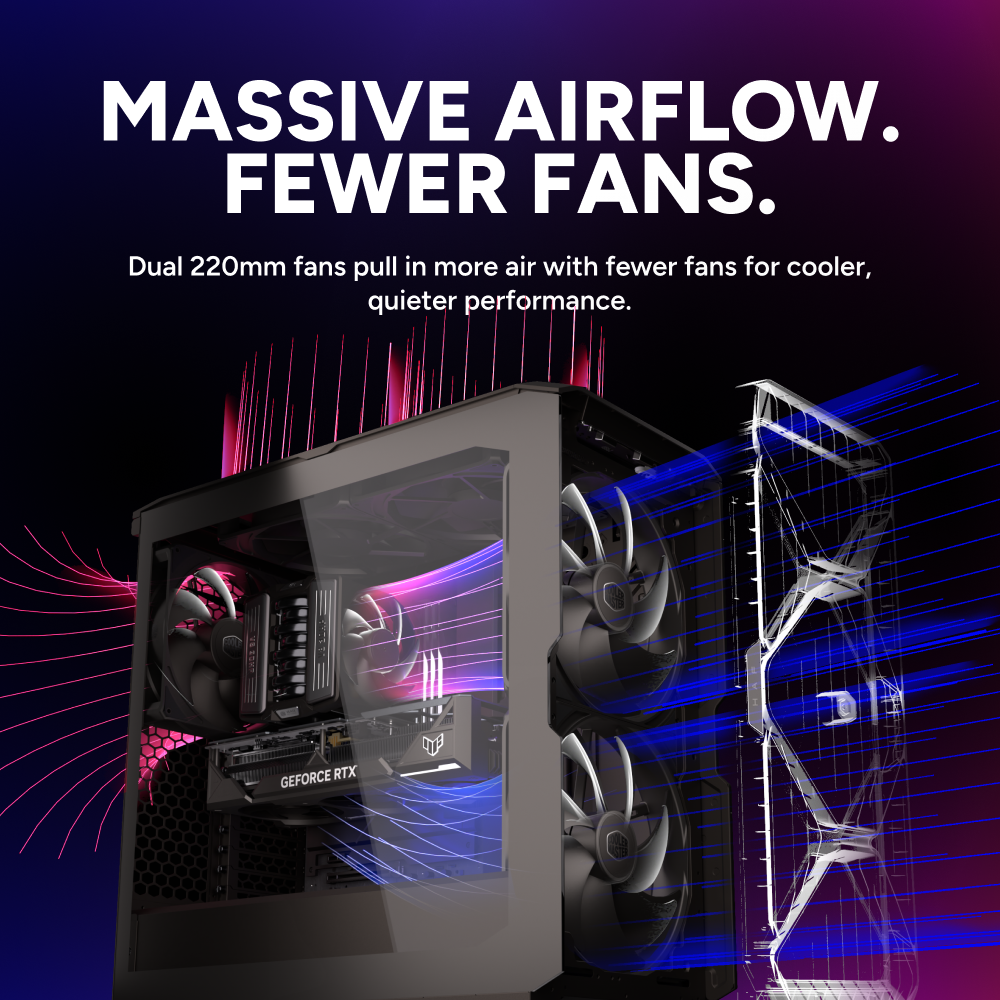

BALANCED AIRFLOW, NOT JUST BIGGER AIRFLOW

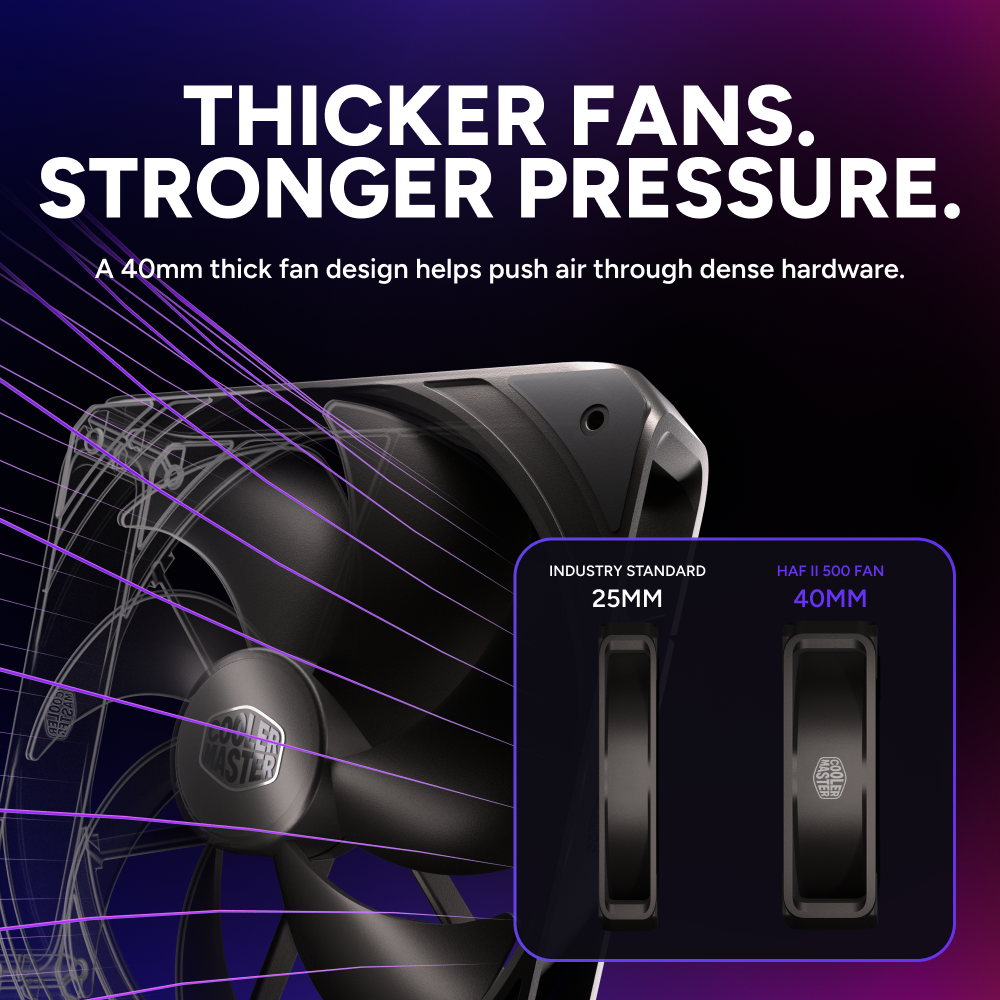

The Largest and Thickest Fans Ever Used in a Consumer PC Case


Two Mighty40 F220 intake fans and one Mighty40 V180 exhaust fan work together to create a balanced airflow system. By maximizing airflow at lower RPMs, HAF II 500 achieves exceptional cooling performance while keeping noise under control.

LOW AIRFLOW RESISTANCE DESIGN

Built to Let Air Move Freely


Large front and rear ventilation openings increase airflow throughout while minimizing chassis-induced interference, allowing the cooling system to perform closer to its full potential.

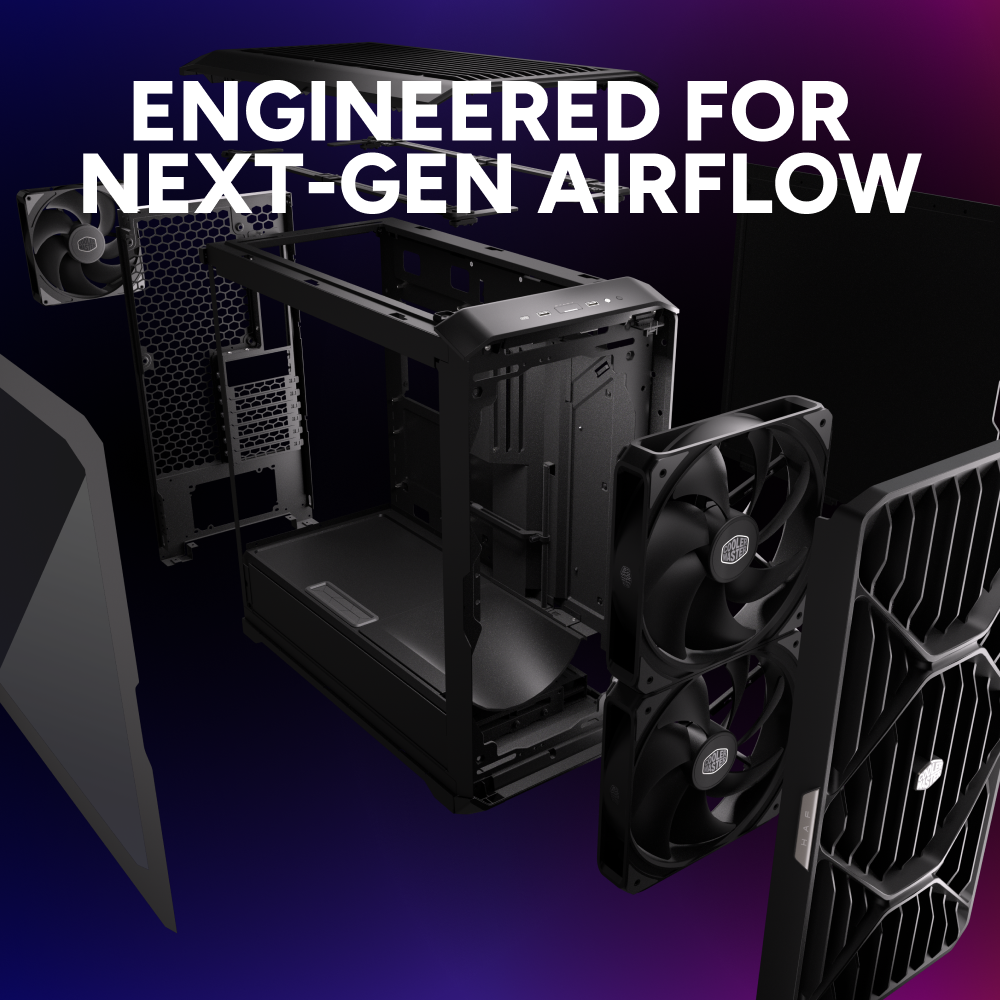

THE ARCHITECTURE BEHIND THE PERFORMANCE

Split-Level Cable Management


The Split-Level Layout reallocates cable-routing space based on actual routing needs, creating room for the oversized 180 mm exhaust fan while maintaining controlled chassis dimensions and improving overall cooling efficiency.

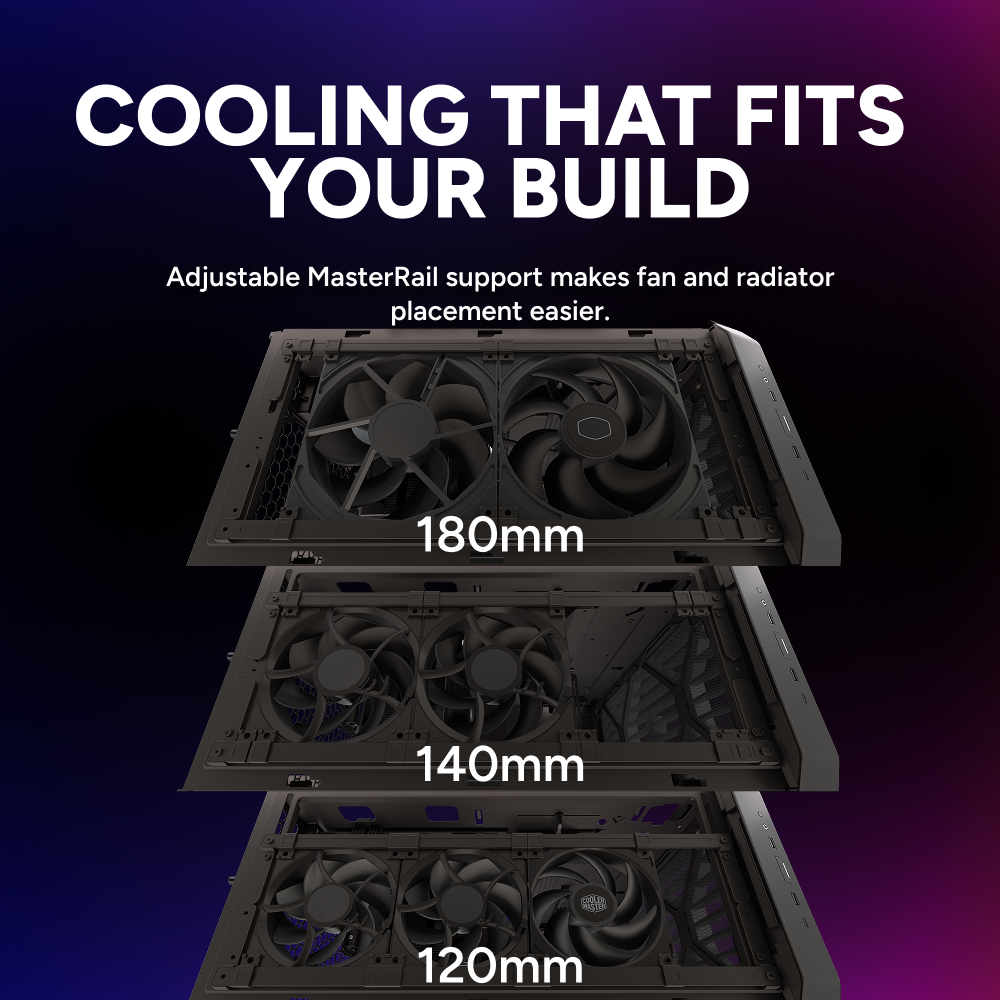

MASTERRAIL MULTI-PURPOSE MOUNTING SYSTEM

MasterRail combines adjustable sliding rails with a standardized mounting platform that supports multiple fan and radiator sizes while maintaining an unobstructed airflow path.

Beyond fans and radiators

MasterRail is designed to support future accessories and compatible third-party devices that share common mounting patterns, extending flexibility far beyond traditional mounting systems.

SLIDING CABLE COVER

The sliding cable cover conceals cables within the centralized routing chamber and visually blends with the motherboard area.

Its airflow-guiding design reduces airflow interference, while shark-gill-inspired vents assist memory cooling.

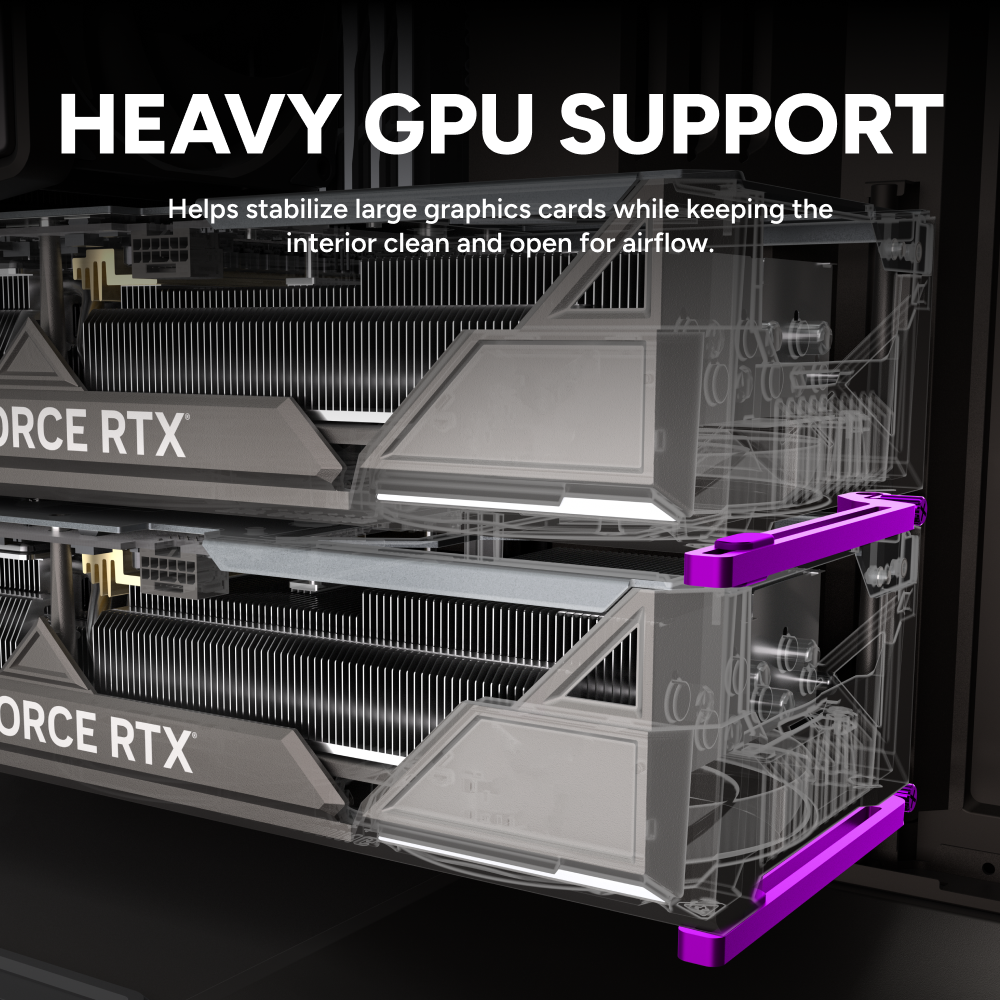

DUAL-MODE GPU HOLDER

The Dual-Mode GPU Holder lets users clamp a single graphics card for improved transport stability or support two graphics cards up to 3.6 slots / 72 mm thick each.

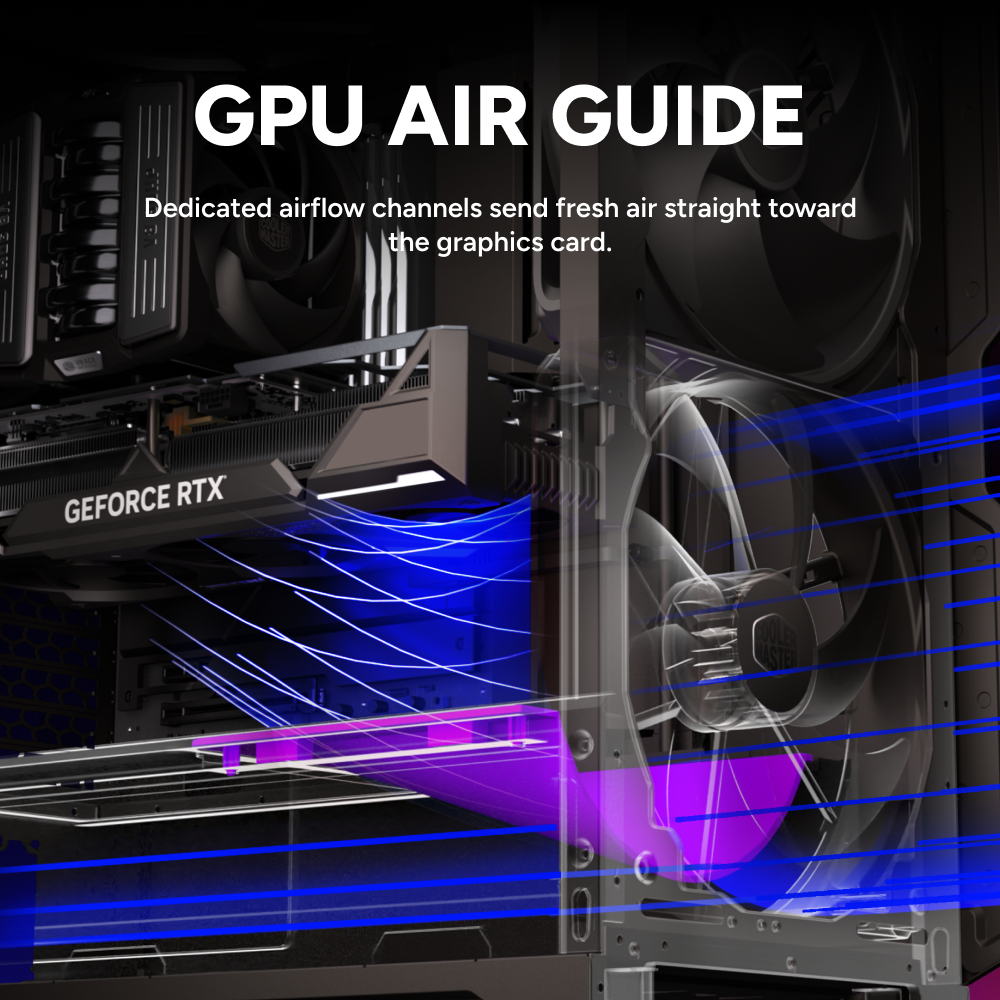

THERMALLY PRIORITIZED AIRFLOW DIVIDER

The airflow divider directs airflow from the lower intake fan toward the GPU, the most thermally demanding component in a typical system, while maintaining effective cooling for storage drives and nearby PCIe devices.

WORKSTATION COMPATIBILITY

Built Beyond Gaming


Support for up to four dual-slot GPUs or two 72 mm-thick graphics cards enables powerful workstation configurations for AI, rendering, simulation, and other GPU-compute-intensive workloads.

FLEXIBLE COOLING COMPATIBILITY

With support for multiple fan and radiator configurations across the top, front, and rear panels, HAF II 500 gives builders the flexibility to create high-airflow or liquid-cooled systems.

OPTIMIZED CABLE ROUTING EXPERIENCE

Zoned cable-routing space, integrated cable straps, and a centralized routing chamber streamline the building experience, helping keep builds organized while simplifying cable management and preserving airflow efficiency throughout the chassis.

Productspecificaties

  • Productnaam HAF II 500
  • Afmetingen (L x B x H) incl. uitsteeksels 557 x 262 x 548 mm
  • Afmetingen (L x B x H) Volume (incl. uitsteeksels) 79.98 L
  • Ondersteuning moederbord Mini-ITX, Mini-DTX, Micro-ATX, ATX, CEB (ATX-Compatible Standoff Pattern), E-ATX (ATX-Compatible Standoff Pattern; Up to 310 mm Wide)
  • Materiaal - Chassis SGCC (0.7 – 0.8 mm Thickness)
  • Materiaal - Paneel ABS
  • Materiaal - Zijpaneel Tempered Glass (Left Panel); SGCC (Right Panel)
  • Ruimte - Kabelbeheer 15 – 40 mm
  • Vrije ruimte - CPU-koeler 221 mm (Intel); 220 mm (AMD)
  • Ruimte - Voeding 150 mm (North-South Drive Orientation); 210 mm (East-West Drive Orientation)
  • Beschikbare ruimte - Lengte grafische kaart 430 mm (With Mighty40 F220 Fans Installed)
  • Vrije ruimte - Dikte grafische kaart 72 mm / Card When Installing 2 Graphics Cards; 40 mm / Card When Installing 4 Graphics Cards
  • Stoffilters Top / Front / Bottom (PSU)
  • Uitbreidingssleuven 8
  • Ondersteunde drivebays - 3.5” / 2.5” 3 / 6 (PSU Length ≤ 150 mm) ; 2 / 4 (150 mm < PSU Length ≤ 210 mm)
  • Vooraf geïnstalleerde drivebay - 3.5” / 2.5” 3 / 6
  • Ventilatorondersteuning boven 3 x 120 / 140 mm, or 2 x 160 / 180 mm
  • Ondersteuning ventilatoren voorzijde Default: 2 x 220 mm; With MasterRails: 3 x 120 / 140 mm, or 2 x 160 / 180 mm
  • Ventilatorondersteuning achter 1 x 180 mm
  • Voorgeïnstalleerde ventilatoren voor 2 x Mighty40 F220
  • Voorgeïnstalleerde ventilatoren achter 1 x Mighty40 V180
  • Fanhub-poorten 6 x PWM; 6 x ARGB
  • Totale voedingscapaciteit van fan-hub 54W
  • Radiatorondersteuning boven 240 / 280 / 360-120 / 360-180 mm (Conditional Support*)
  • Radiatorondersteuning voorzijde With MasterRails: 240 / 280 / 360-120 / 360-180 mm (Conditional Support**)
  • Aan/uit-LED van I/O-paneel 1
  • USB-poorten op I/O-paneel 1 x USB 3.2 Gen 2x2 Type-C; 2 x USB 3.2 Gen 1 Type-A
  • I/O-paneel audio in / uit 1 x 3.5 mm Headset Jack (Audio + Mic)
  • I/O-paneel resetknop 1
  • Garantieaanvraag 2 Years
  • Garantie ventilator 5 Years

Ventilatorspecificaties - Mighty40 F220

  • Productnaam Mighty40 F220
  • Afmetingen (L x B x H) 220 x 220 x 40 mm
  • Nominale spanning 12 V DC
  • Maximale stroom 0.5 A
  • Snelheid 200 – 1050 rpm
  • Maximale luchtstroom 203.8 CFM
  • Maximale druk 3.1 mmH2O
  • Max. geluidsniveau (op 1 m) 36 dB(A)
  • Type lager Dual Ball Bearing
  • Framemateriaal PBT
  • Materiaal van de bladen LCP
  • Gewicht 500 g
  • Garantie 5 years

Ventilatorspecificaties - Mighty40 V180

  • Productnaam Mighty40 V180
  • Afmetingen (L x B x H) 180 x 180 x 40 mm
  • Nominale spanning 12 V DC
  • Maximale stroom 0.3 A
  • Snelheid 250 – 1370 rpm
  • Maximale luchtstroom 161.5 CFM
  • Maximale druk 4.0 mmH2O
  • Max. geluidsniveau (op 1 m) 34 dB(A)
  • Type lager Dual Ball Bearing
  • Framemateriaal PBT
  • Materiaal van de bladen LCP
  • Gewicht 425 g
  • Garantie 5 years
