Compact by Design. Airflow at the Core.

Elite 450

• Efficient Cooling Fan Configuration

• Short Airflow Path Design

• Ultra-Compact Sub-30L Volume

• Pure Air-Cooling Architecture

COMPACT BY DESIGN. AIRFLOW AT THE CORE.

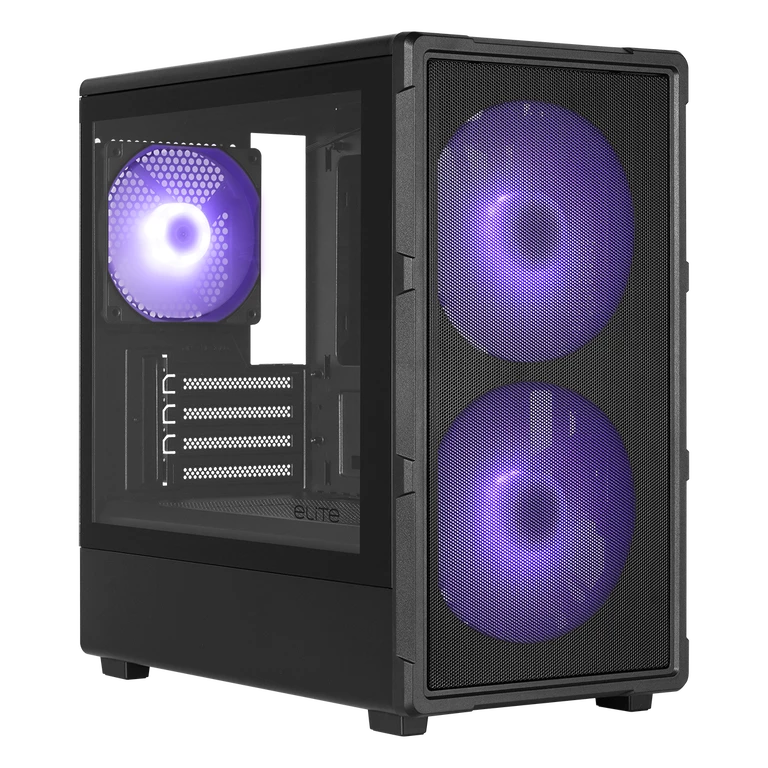

The Elite 450 is a compact Micro-ATX case designed for modern desktop systems that demand efficient cooling without taking up unnecessary space.


Built around a dedicated air-cooling architecture, its optimized short airflow path helps deliver cool air directly toward heat-generating components. Two large 160mm ARGB fans at the front and a 120mm ARGB fan at the rear provide abundant airflow straight out of the box while adding customizable ambient lighting.

With a chassis volume under 30 liters, the Elite 450 balances a compact footprint with practical hardware support, accommodating Micro-ATX and Mini-ITX motherboards, graphics cards up to 317mm, and CPU coolers up to 163mm.

EFFICIENT COOLING FAN CONFIGURATION

Big Fans. Bigger Airflow.



Dual 160mm ARGB front fans and a 120mm ARGB rear fan deliver powerful airflow with vibrant lighting right out of the box.

SHORT AIRFLOW PATH DESIGN

Cooler Air. Faster.




A shortened airflow path directs fresh air quickly to key components, helping reduce heat buildup and improve cooling efficiency.

ULTRA-COMPACT SUB-30L VOLUME

Compact Without Compromise.



A sub-30L footprint saves valuable desk space while supporting capable Micro-ATX and Mini-ITX builds.

PURE AIR-COOLING ARCHITECTURE

Built to Breathe.




Purpose-built for air cooling, the Elite 450 optimizes internal airflow for simple, efficient, and reliable thermal performance.

MESH FRONT PANEL

Maximum Airflow Up Front.



The high-airflow mesh front lets the dual 160mm fans breathe freely, feeding fresh air directly into your system.

TEMPERED GLASS SIDE PANEL

Put Your Build on Display.



A tempered glass side panel gives you a clear view of your hardware and ARGB lighting.

MODERN FRONT I/O

Connected. Convenient.



Easy-access USB Type-A, USB Type-C, and dedicated audio connections keep everyday connectivity within reach.

Specifications

  • Product Name Elite 450
  • Model Number E450-KGNN-S00
  • Color Black
  • Material - Front Panel Mesh
  • Material - Left Side Panel Tempered Glass
  • Material - Right Side Panel Steel
  • Dimensions (L x W x H) - Incl. Protrusions 392mm×208mm×396mm
  • Dimensions (L x W x H) - Excl. Protrusions 358mm×208mm×382mm
  • Motherboard Support Micro-ATX / ITX
  • Expansion Slots 4
  • Drive Bays - 5.25’’ ODD N/A
  • Drive Bays - 3.5’’ HDD 1
  • Drive Bays - 2.5’’ SSD 2
  • I/O Panel - USB Ports USB 3.2 Gen1 Type A*1 + USB 3.2 Gen1 Type C*1 + USB1.0*1
  • I/O Panel - Audio In 1 x 3.5mm
  • I/O Panel - Audio Out 1 x 3.5mm
  • Fan Support - Top 2 x 120mm or 2 x 140mm
  • Fan Support - Rear 1 x 120mm
  • Fan Support - Front 2 x 160mm
  • Fan Support - Bottom 2 x 120mm
  • Pre-installed Fans - Rear 1*120mm ARGB
  • Pre-installed Fans - Front 2*160mm ARGB
  • Radiator Support - Top N/A
  • Radiator Support - Side N/A
  • Clearances - CPU Cooler 163mm
  • Clearances - Power Supply 160mm
  • Clearances - Graphics Card 317mm
  • Power Supply Support ATX
  • Warranty 2 Years
