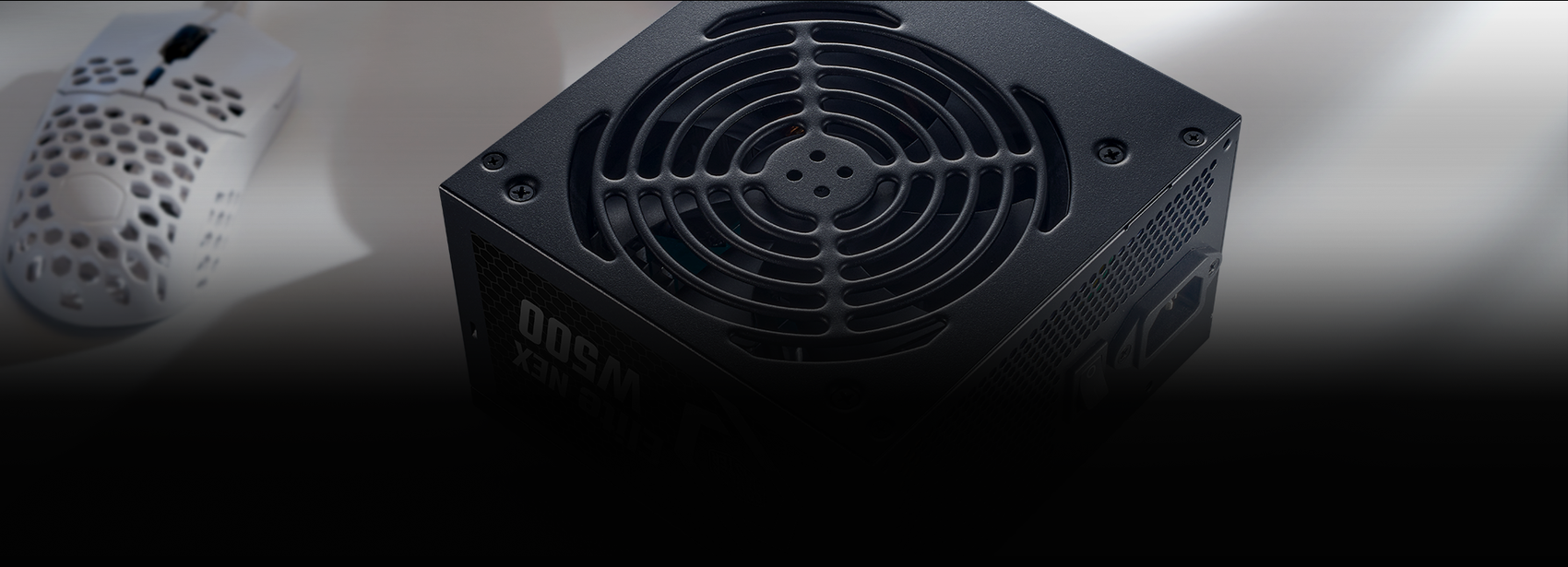

ELITE NEX N500 230V

NEX Level Power

Active PFC and a dual forward topology design
Excellent temperature resistance
High peak power tolerance
Durability, reliability, and safety
75% efficiency
3-year warranty

Active power factor correction and a dual forward topology design

Active power factor correction and a dual forward topology design

Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.

High peak power tolerance

High peak power tolerance

Can reliably push an additional 100W at peak power loads for up to 20 seconds.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

More
Specifications
Model MPW-5001-ACBN-B
ATX Version ATX 12V Ver. 2.41
PFC Active PFC
Input Voltage 200-240V
Input Current 4A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing Sleeve Fan
Efficiency ≥ 75% @ Typical Load
ErP 2014 Lot 3 Yes
Operating Temperature 0-40°C
Power Good Signal 100 - 500 ms
Hold Up Time ≥10ms at 100% load
MTBF >100,000 Hours
Protections OVP, OPP, SCP, UVP, OTP, Inrush Protection
Regulatory TUV, CE, CCC, EAC, UKCA
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
SATA Connectors 5
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
Series Elite Series
80 Plus None 80 PLUS
Modular Non Modular
Wattage 500 to 750W
Downloads
EAN / UPC
Cable Type EAN UPC
UK 4719512128060 884102100383
IN 4719512128077 884102100390
PH 4719512128084 884102100406
EU 4719512128091 884102100413
ST 4719512128107 884102100420
AU 4719512128114 884102100437
BR 4719512128121 884102100444
KR 4719512128138 884102100451
WO 4719512128145 884102100468
