Cooling That Stands Out

MasterLiquid Core LCD 6” Series

Name: MasterLiquid Core LCD 6” Series
Brand: Cooler Master
SKU: masterliquid-core-lcd-6-series
Availability: InStock

• Expansive 6-Inch TFT LCD

• Thermal Excellence

• Whisper-Quiet Power

• MasterCTRL Ecosystem

• Optimum Tubing Length

COOLING THAT STANDS OUT

The MasterLiquid Core LCD Series features a massive 6-inch display, transforming your pump into a high-definition command center. Engineered for creators, it offers an expansive canvas for telemetry or digital art. With precision ball-joint adjustment and MasterCtrl support, it ensures seamless synchronization and perfect viewing angles. It’s the ultimate visual centerpiece for your professional workstation.

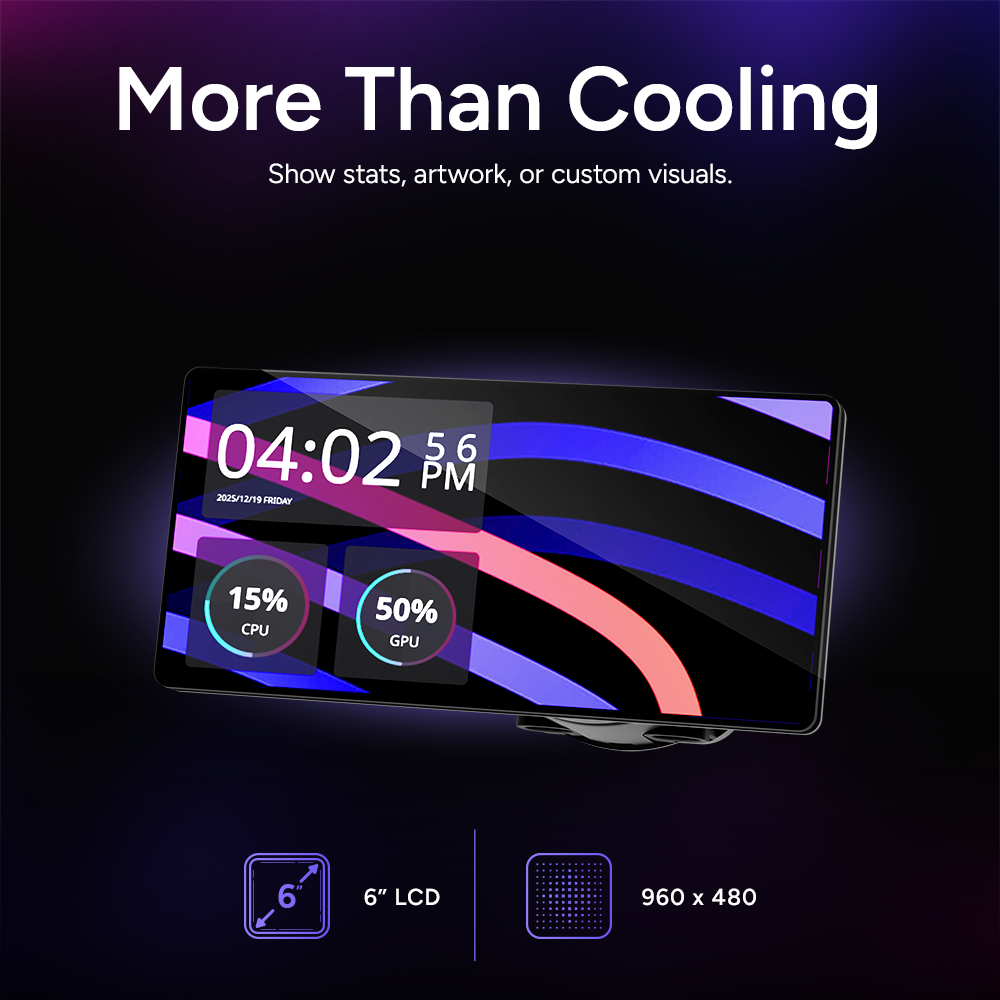

SEE MORE INSTANTLY

Keep key system stats visible at a glance or personalize your build with custom visuals and digital artwork—all displayed on a vibrant 6-inch TFT LCD with crisp 960 × 480 resolution.

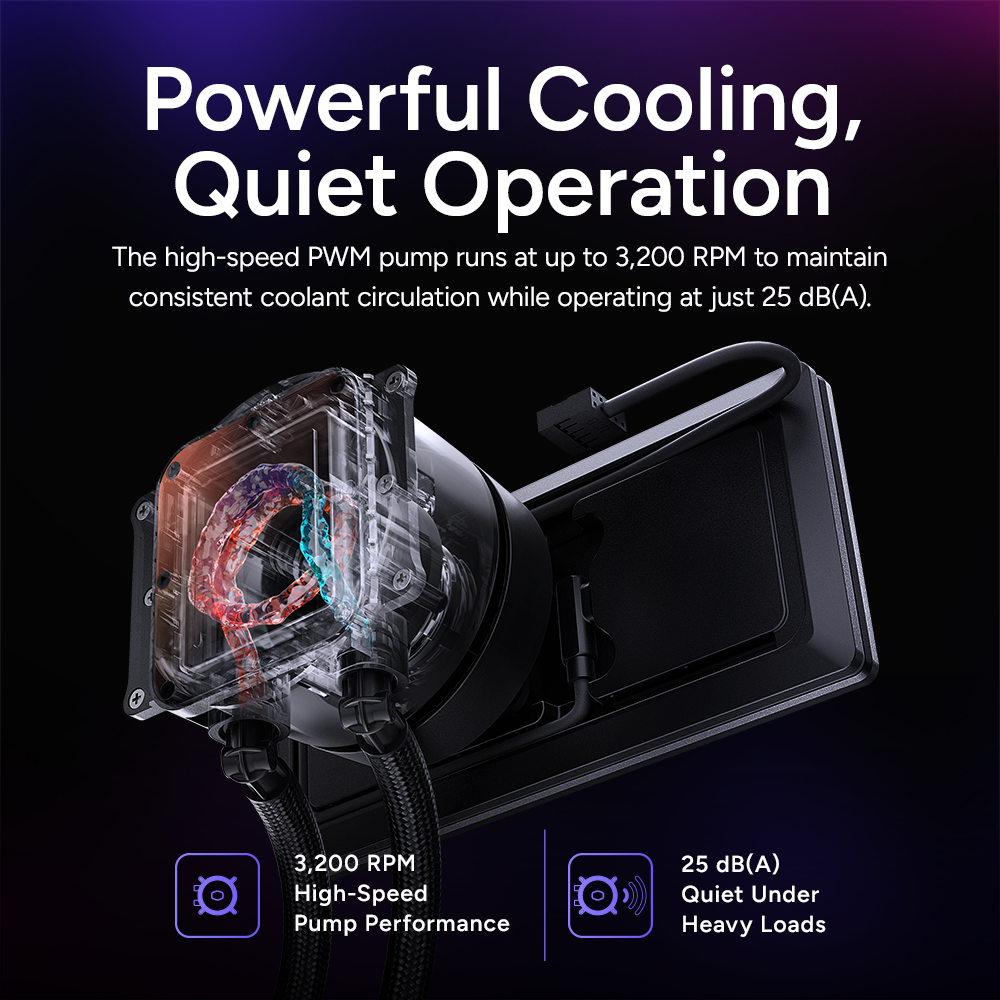

POWERFUL COOLING, QUIET OPERATION

The high-speed PWM pump operates at up to 3,200 RPM to maintain consistent coolant flow and efficient heat transfer, while producing just 25 dB(A) of noise under demanding loads.

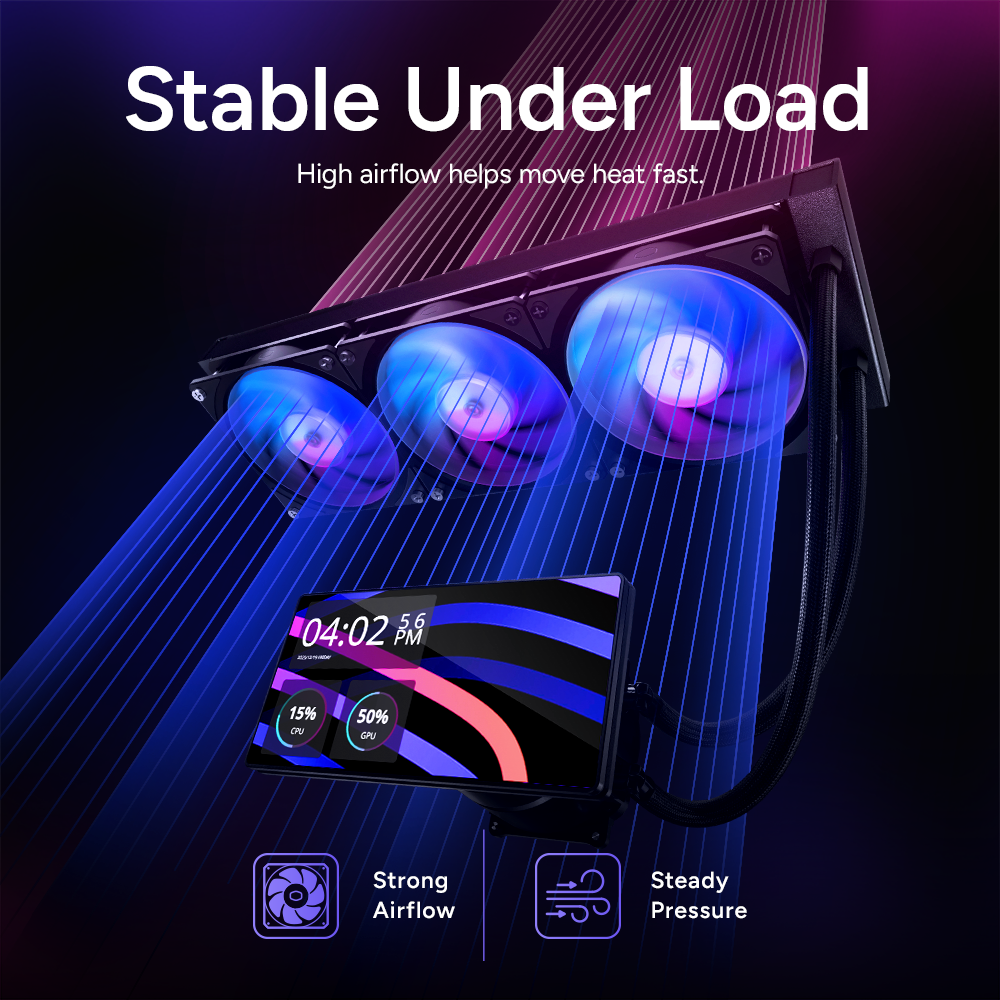

STAY COOL UNDER LOAD

Strong airflow and consistent static pressure push air efficiently through the radiator, accelerating heat dissipation for reliable cooling during gaming, rendering, and other demanding workloads.

COOLER AND QUIETER

Optimized fans and a low-noise pump deliver powerful cooling while keeping sound under control, so you can stay focused on your game, work, or content.

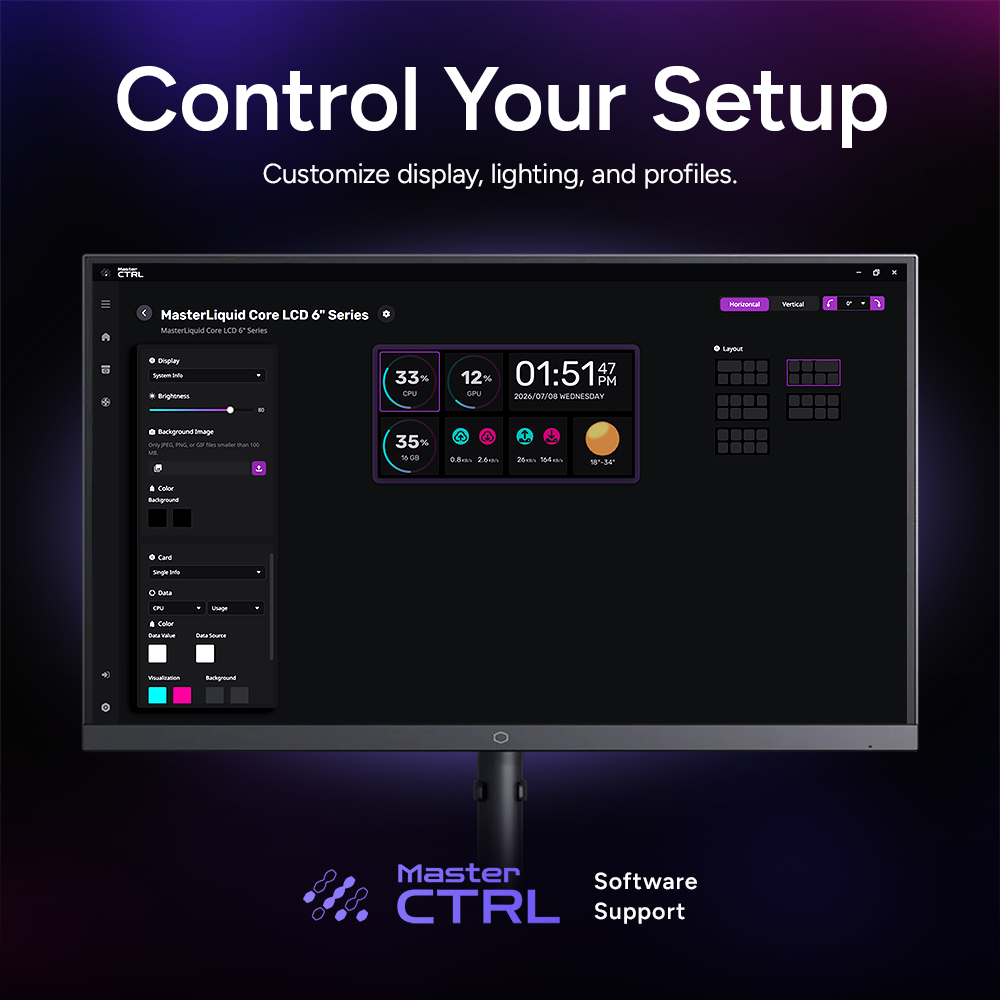

CONTROL YOUR SETUP

MasterCTRL brings your LCD content, ARGB lighting, and cooling profiles into one intuitive interface, making it easy to personalize your setup and fine-tune performance from one place.

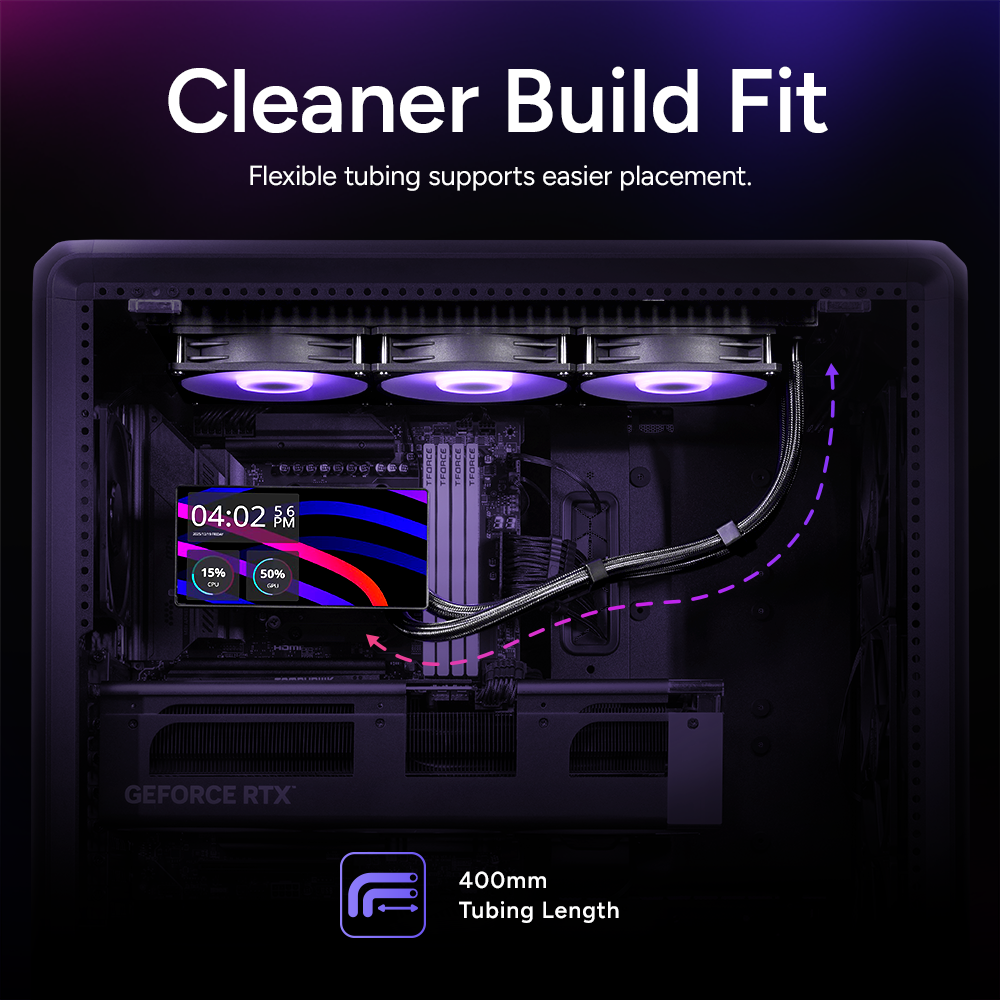

A CLEANER BUILD

Flexible 400 mm tubing provides greater freedom for radiator placement and routing, helping simplify installation while keeping your system clean and organized.

BUILT FOR LONG-TERM BUILDS

Engineered for dependable, long-term cooling performance and backed by a 6-year warranty for added confidence in every build.

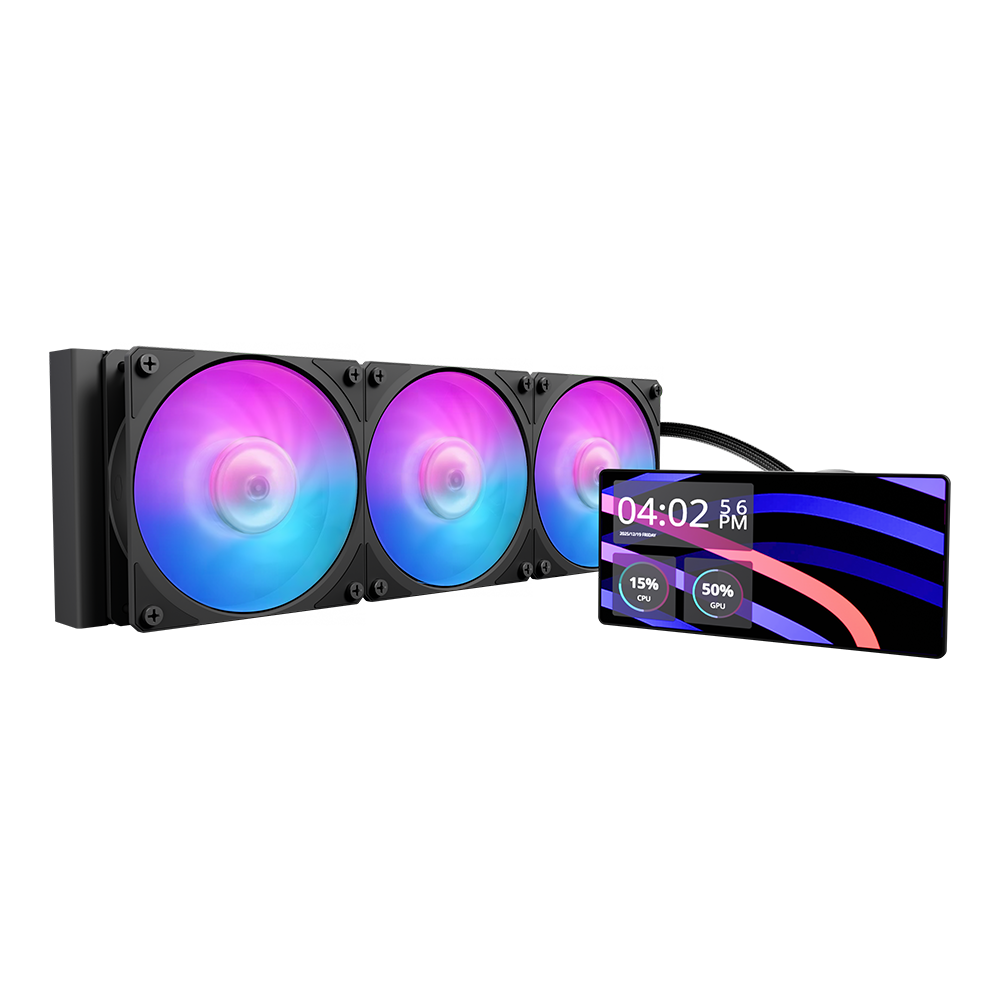

Specifications - MasterLiquid Core LCD 6" 360 Black ARGB

Model Name MasterLiquid Core LCD 6" 360 Black ARGB
Model Number MLW-D36M-A24PA-L1
Exterior Color Black
Intel CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket AMD® AM5 / AM4 socket
Waterblock Dimensions 153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
Radiator Material Aluminum
Tube Length 400mm
Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles Addressable RGB
Fan Quantity (pcs) 3 PCS
Fan Speed 0-2400 RPM ± 10%
Fan Air Flow (Max) 127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max) 3.63 mmH₂O
Fan MTTF >200,000 hours
Fan Noise Level (Max) 30 dB(A)
Fan Bearing LDB
Fan Connector 7-Pin PWM+ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A
Fan Safety Current 0.4 A
Fan Power Consumption 2.4 W
Pump Profiles Addressable RGB
Pump Speed 3200±10% RPM
Pump MTTF > 35,0000 hours
Pump Noise Level (Max) 25 dB(A)
Pump Rated Voltage 12 VDC
Pump Power Consumption 7.2 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Display Type TFT LCD
Display Area (Resolution) 6 inch (960*480)
Luminance 300 cd/m²
Display Rated Voltage 5 VDC
Display Rated Current 0.4 A
Display Safety Current 0.6 A
Display Power Consumption 3 W
Display Connector USB 2.0 9PIN
Orientation Software-MasterCTRL adjustable
Warranty 6 years

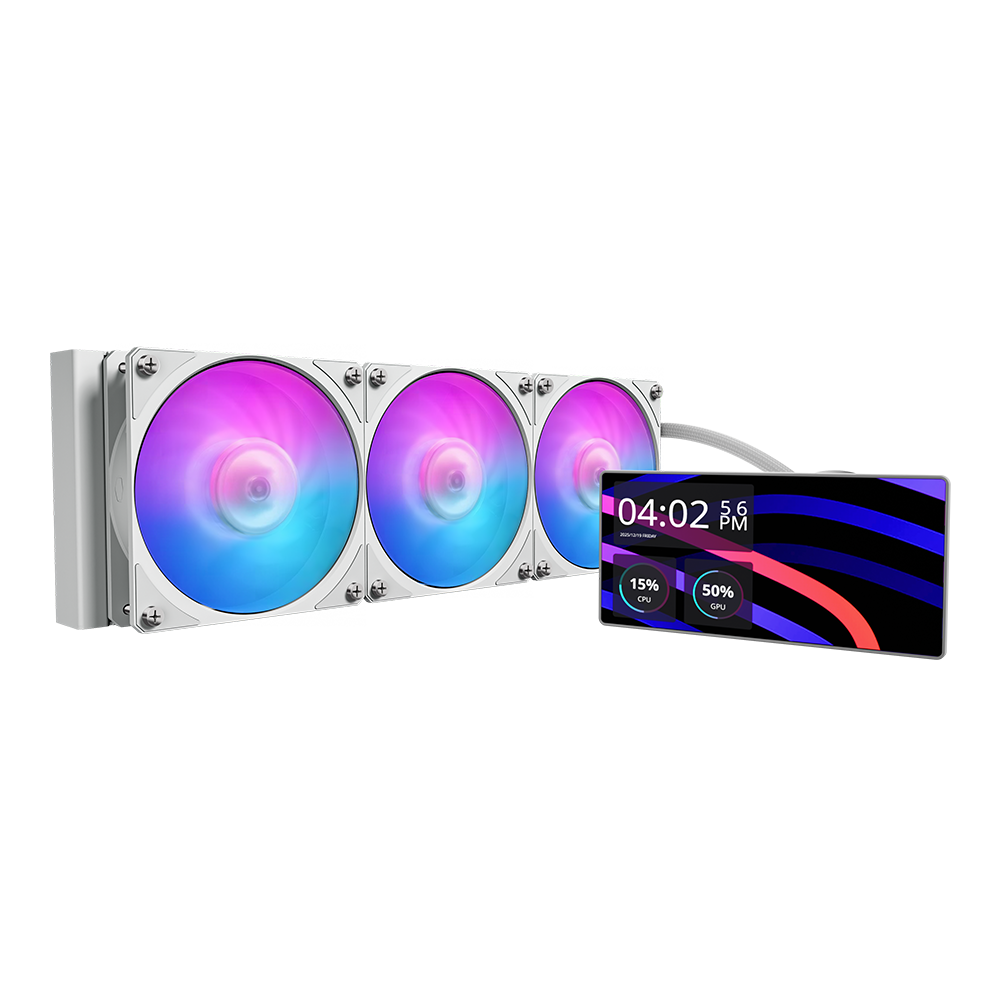

Specifications - MasterLiquid Core LCD 6" 360 White ARGB

Model Name MasterLiquid Core LCD 6" 360 White ARGB
Model Number MLW-D36M-A24PA-LW
Exterior Color White
Intel CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket AMD® AM5 / AM4 socket
Waterblock Dimensions 153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
Radiator Material Aluminum
Tube Length 400mm
Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles Addressable RGB
Fan Quantity (pcs) 3 PCS
Fan Speed 0-2400 RPM ± 10%
Fan Air Flow (Max) 127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max) 3.63 mmH₂O
Fan MTTF >200,000 hours
Fan Noise Level (Max) 30 dB(A)
Fan Bearing LDB
Fan Connector 7-Pin PWM+ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A
Fan Safety Current 0.4 A
Fan Power Consumption 2.4 W
Pump Profiles Addressable RGB
Pump Speed 3200±10% RPM
Pump MTTF > 35,0000 hours
Pump Noise Level (Max) 25 dB(A)
Pump Rated Voltage 12 VDC
Pump Power Consumption 7.2 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Display Type TFT LCD
Display Area (Resolution) 6 inch (960*480)
Luminance 300 cd/m²
Display Rated Voltage 5 VDC
Display Rated Current 0.4 A
Display Safety Current 0.6 A
Display Power Consumption 3 W
Display Connector USB 2.0 9PIN
Orientation Software-MasterCTRL adjustable
Warranty 6 years

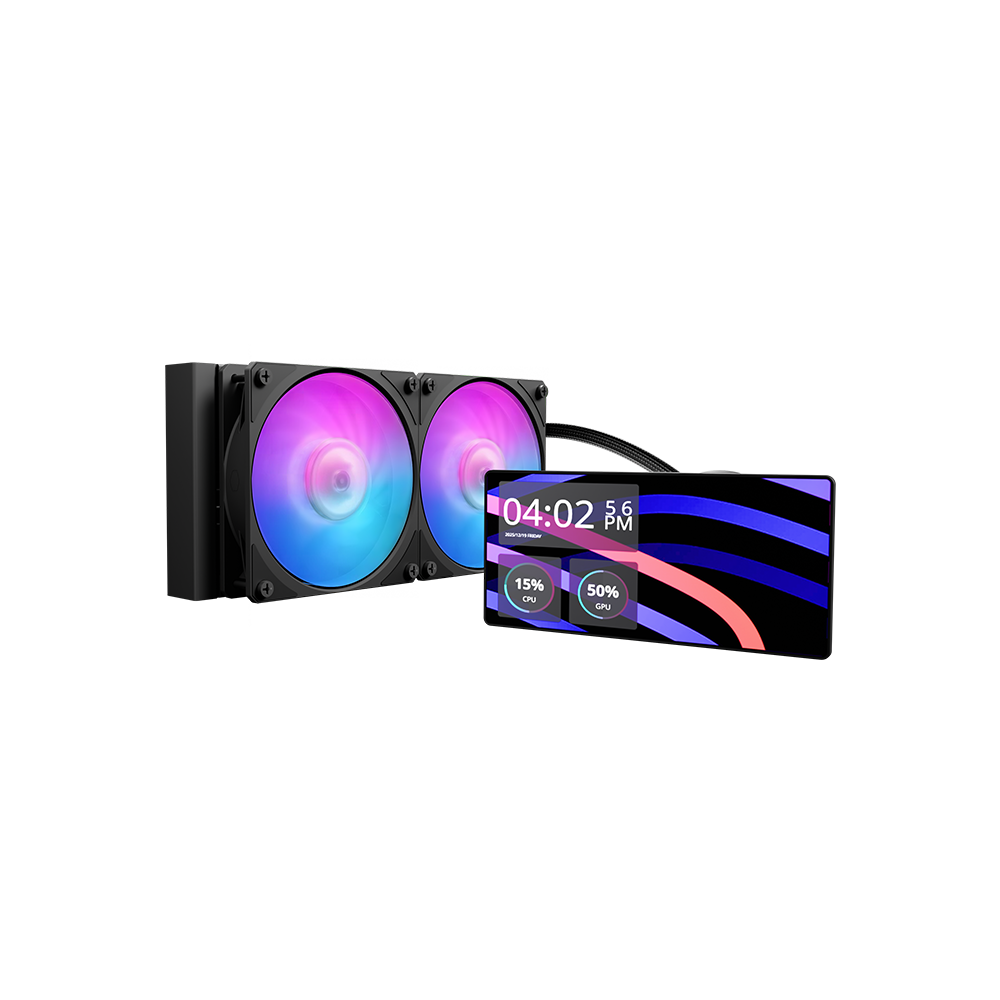

Specifications - MasterLiquid Core LCD 6" 240 Black ARGB

Model Name MasterLiquid Core LCD 6" 240 Black ARGB
Model Number MLW-D24M-A24PA-L1
Exterior Color Exterior Color Black
Intel CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket AMD® AM5 / AM4 socket
Waterblock Dimensions 153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions 274 x 119.6 x 27.2 mm (10.8 x 4.7 x 1.1 inch)
Radiator Material Aluminum
Tube Length 400mm
Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles Addressable RGB
Fan Quantity (pcs) 3 PCS
Fan Speed 0-2400 RPM ± 10%
Fan Air Flow (Max) 127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max) 3.63 mmH₂O
Fan MTTF >200,000 hours
Fan Noise Level (Max) 30 dB(A)
Fan Bearing LDB
Fan Connector 7-Pin PWM+ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A
Fan Safety Current 0.4 A
Fan Power Consumption 2.4 W
Pump Profiles Addressable RGB
Pump Speed 3200±10% RPM
Pump MTTF > 35,0000 hours
Pump Noise Level (Max) 25 dB(A)
Pump Rated Voltage 12 VDC
Pump Power Consumption 7.2 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Display Type TFT LCD
Display Area (Resolution) 6 inch (960*480)
Luminance 300 cd/m²
Display Rated Voltage 5 VDC
Display Rated Current 0.4 A
Display Safety Current 0.6 A
Display Power Consumption 3 W
Display Connector USB 2.0 9PIN
Orientation Software-MasterCTRL adjustable
Warranty 6 years

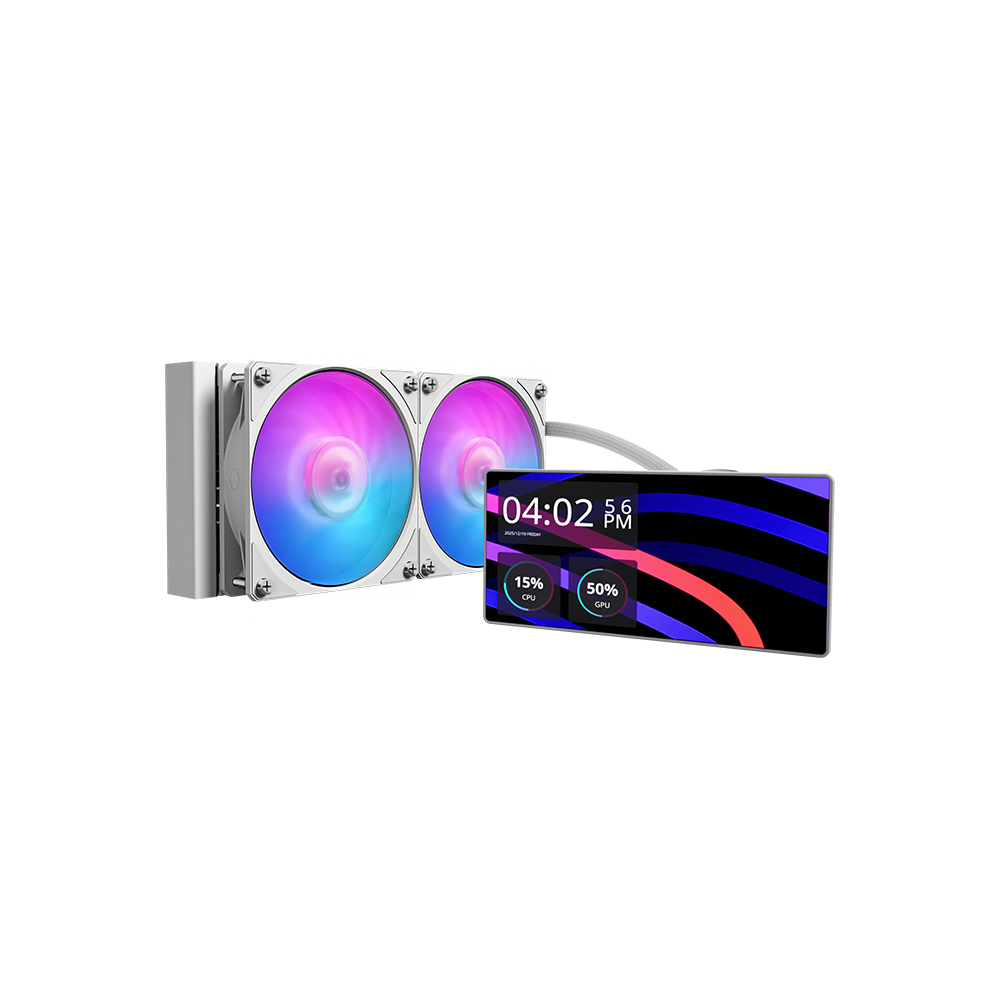

Specifications - MasterLiquid Core LCD 6" 240 White ARGB

Model Name MasterLiquid Core LCD 6" 240 White ARGB
Model Number MLW-D24M-A24PA-LW
Exterior Color White
Intel CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
AMD CPU Socket AMD® AM5 / AM4 socket
Waterblock Dimensions 153.5 x 84.2 x 83.9 mm (6 x 3.3 x 3.3 inch)
Radiator Dimensions 274 x 119.6 x 27.2 mm (10.8 x 4.7 x 1.1 inch)
Radiator Material Aluminum
Tube Length 400mm
Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Profiles Addressable RGB
Fan Quantity (pcs) 3 PCS
Fan Speed 0-2400 RPM ± 10%
Fan Air Flow (Max) 127.8 m³/h (75.2 CFM)
Fan Air Pressure (Max) 3.63 mmH₂O
Fan MTTF >200,000 hours
Fan Noise Level (Max) 30 dB(A)
Fan Bearing LDB
Fan Connector 7-Pin PWM+ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2 A
Fan Safety Current 0.4 A
Fan Power Consumption 2.4 W
Pump Profiles Addressable RGB
Pump Speed 3200±10% RPM
Pump MTTF > 35,0000 hours
Pump Noise Level (Max) 25 dB(A)
Pump Rated Voltage 12 VDC
Pump Power Consumption 7.2 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Display Type TFT LCD
Display Area (Resolution) 6 inch (960*480)
Luminance 300 cd/m²
Display Rated Voltage 5 VDC
Display Rated Current 0.4 A
Display Safety Current 0.6 A
Display Power Consumption 3 W
Display Connector USB 2.0 9PIN
Orientation Software-MasterCTRL adjustable
Warranty 6 years
