The Intelligent Guardian

MWE Gold V4

GPU Shield Intelligent Current Management (Patent Applied For) ​

80 Plus Gold efficiency​​

Digital Control PSU ​​

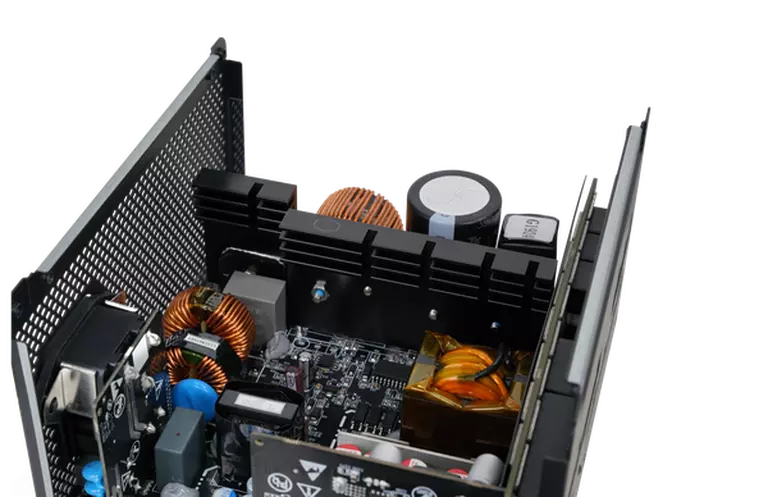

Wave-type heatsink design​​

ATX 3.1 & PCIe 5.1 Standards Support ​

Low-noise Design

Conformal Coating

10-year warranty

The Intelligent Guardian
The Intelligent Guardian
GPU Shield Intelligent Current Management

Automatically detects abnormal current, and alerts users through LED indicators for safer, more stable power delivery.

GPU Shield Intelligent Current Management
GPU Shield Intelligent Current Management
Digital Control IC

Engineered with digital control IC to achieve precise digital tuning of PFC and LLC, improving the overall efficiency 3% higher than previous series.

Digital Control IC
750W / 850W

750W/850W Modular Cables

750W / 850W
750W / 850W
1000W

1000W Modular Cables

1000W
1000W

ATX 3.1 & PCIe 5.1 Standards Support


Equipped with the latest standard and 12V-2x6 output connector, ready for next-gen flagship graphics cards.

Low-noise Design



Engineered to achieve a lab-level noise control to deliver quiet power operation.

Conformal Coating



Protective coating that improves durability and safeguards components in harsh environments.

10-year warranty



This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

Specifications

  • Model 750W: MPM-75F4-AFG​ | 850W: MPM-85F4-AFG​ | 1000W: MPM-A0F4-AFG
  • ATX Version ATX 12V Ver. 3.1
  • PFC Active PFC
  • Input Voltage 100 – 240 V~
  • Input Current 750W / 850W: 10 – 6 A​ | 1000W: 15 – 8 A
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Fan Size 120mm
  • Fan Bearing Hydrodynamic bearing
  • Efficiency ≥90% @ Typical Load
  • 80 PLUS Rating 80 PLUS Gold
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-40°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥ 11ms @ 100% Load
  • MTBF >100,000 hours @ 25℃ ambient
  • Protections SCP / OVP / UVP / OCP / OPP / OTP
  • Regulatory cTÜVus / TÜV / RoHS / CB / CE / FCC / BSMI / CCC / KCC / RCM / UKCA
  • ATX 24 Pin Connectors x1 = 1x (600mm)
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)
  • EPS 8 Pin Connector x1 = 1x (700mm)
  • PCI-E 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm)​ ｜1000W: x3 = 3x (600mm)
  • 12V-2x6(12+4 Pin) Connectors x1 = 1x (600mm)
  • SATA Pin Connectors x6 = 2x (400+120+120mm)
  • Peripheral 4 Pin Connectors x3 = 1x (400+120+120mm)
