Real Power, Real Control

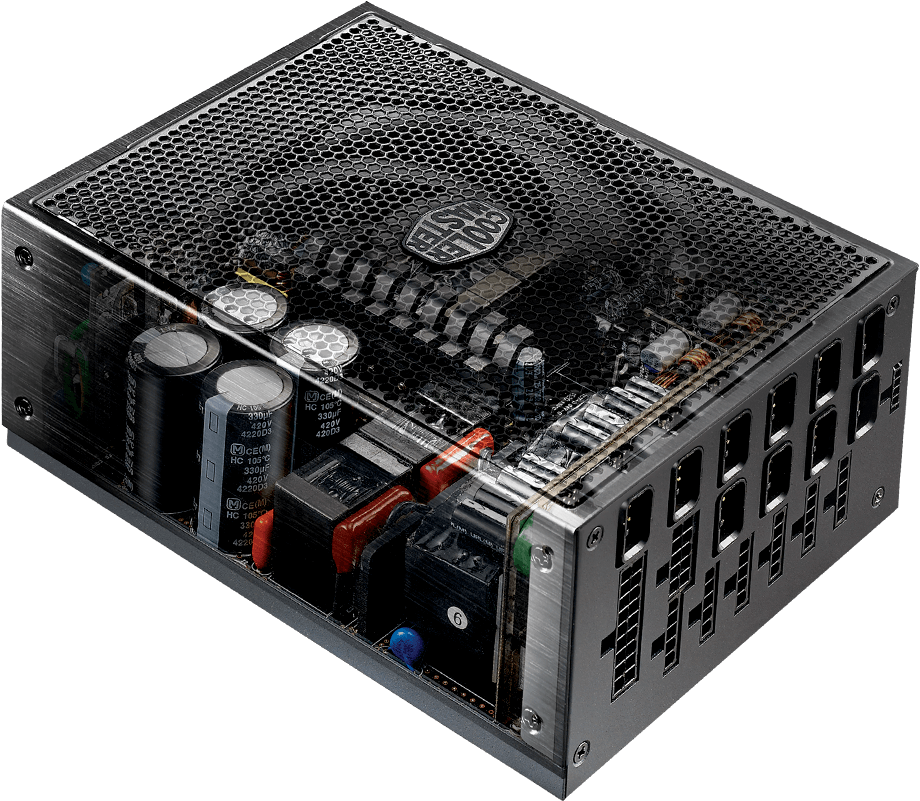

MASTERWATT MAKER 1500 (no Bluetooth)
Brains, Strength and Looks
Cooler Master's first all aluminum, Titanium 94% efficiency power supply unit offers unbeatable performance in tandem with paralleled oversight and control via our exclusive Cooler Master Connect app.
Low ripple, noise
Voltage is automatically adjusted to remain within +/- 1, keeping output stable even under high loads.
Safety settings
A full suite of automatic measures are always alert so you can focus on worry-free computing
Real Power
Our flagship power supply comes with an award-winning design, an efficiency rating few have managed to reach, and the control perks of a high-end digital signal processor. All of this combines into a whopping 1500 watts of continuous power that can run safely over a conventional household outlet.
Software can switch between default +12V multi-rail or single rail modes for releasing full overclocking potential.
Cooler Master Connect
World-class Efficiency
No longer do you have to worry about buying a PSU that hopefully matches your average load, and focus instead on how quiet and cool this level of efficiency keeps your PSU.
Soundless Performance
Cooler Master's premium Silencio FP 135mm adjusts its speed depending on the load to setting that you can set in your Cooler Master Connect app. That is, if the fan even needs to spin at all.
Streamlined 3D Technology
Cooler Master's exclusive, next-gen 3D circuit design creates a direct, uncluttered expressway of power that doesn't get caught in messy backstreets of wiring and added components. Combined with premium components, nearly lossless efficiency means:
Cooler components backed by 7-year warranty
Draws less from your household power source
Less heat is wasted, keeping temps down
Over power protection
Output power within 110%~150% of rated DC output
7year warranty
Fully Modular, High-Capacity Cables
MasterWatt Maker's fully modular, flat cable connectors go beyond the standard with a wholly redesigned plug. The plug creates surface contact efficient enough to carry 1.5x the current of normal connectors.
For casual users seeking peace of mind to pros pushing the limits of their hardware, and anyone in between who values accurate performance data when troubleshooting or otherwise, the MasterWatt Maker is for you.
Modular Cables
Product Name MasterWatt Maker 1500 (no Bluetooth)
Model number MPZ-F001-AFBAT-*1
ATX Version ATX 12V v2.4
PFC Active PFC (>0.95 typical)
Operation Voltage 100-240Vac
Input Voltage 100-240Vac
Input Current 15-7.5A
Input Frequency 47-63Hz
Dimensions (L x B x H) 200 x 150 x 86mm
Fan Size 135mm
Fan Bearing LDB
Power Good Signal 100-500ms
Hold Up Time 16ms
Efficiency 90-94%
ErP 2013 Lot 6 Yes
MTBF 100,000 hours
Connectors MB 20+4 Pin 1
CPU 12V 4+4 Pin 2
PCI-e 6+2 Pin 12
Peripheral 4 Pin 12
FDD Cable 4 Pin 1
Part Number EAN UPC
MPZ-F001-AFBAT-S2 4719512078471 884102050961
MPZ-F001-AFBAT-T2 4719512078488 884102050978
MPZ-F001-AFBAT-E2 4719512078495 884102050985
MPZ-F001-AFBAT-A2 4719512078501 884102050992
MPZ-F001-AFBAT-U2 4719512078518 884102051005
MPZ-F001-AFBAT-B2 4719512078525 884102051012
MPZ-F001-AFBAT-J2 4719512078532 884102051029
MPZ-F001-AFBAT-K2 4719512078549 884102051036
