STAY COOL
GET TUF

MA620P TUF Edition

CO-DESIGNED with TUF GAMING

The MA620P, a dual-tower, dual-fan cooler with Cooler Master's CDC 2.0 technology, is engineered to maximized thermal dissippation for TUF Gaming systems. Customize the lighting through the ASUS Aura Sync software or with the remote included.

OPTIMIZED THERMAL

MA620P TUF limited edition has been tested and optimized for TUF Gaming Alliance eco-system. Build your system with confidence giving you the ultimate gaming performance with the stability you need.

WATCH VIDEO

Dual-Tower Heatsinks & Fans

The dual tower heatsink has a combination of 2 sets of heatsink towers with 2 sets of MasterFan MF120R RGB. The uniquely designed heatsink allows bigger and more spread out surface area, while the MF120R RGB fans give added air pressure from the outside and inside the heatsink to generate massive cooling performance.

Accelerated Airflow Inside Out

The 2 x MasterFan MF120R RGB accelerates removal of heat with the 'Push and Pull' design with special placements at the front and inbetween the tower heatsinks. Airflow is quickly passed through and accelerated with the additional fan.

45% MORE CONTACT WITH CDC 2.0

Continuous Direct Contact Technology 2.0 (CDC 2.0), the contact surface area of heatpipes to the base is increased by 45%. This further enhances the heat transfer mechanism and significantly improves conductance and cooling capability.

More Heatpipes

MasterAir MA620P has 6 x heatpipes for fast transfer of heat, to make sure the CPU is running at optimal performance. Combined with the twin tower and dual fan design, you can even maximum TDP for the extreme overclockers.

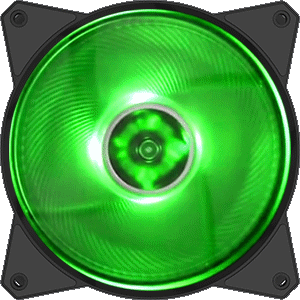

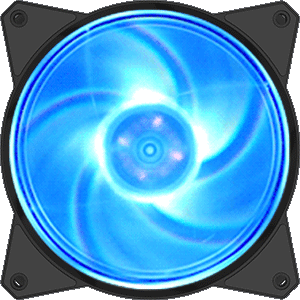

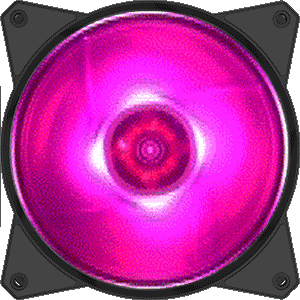

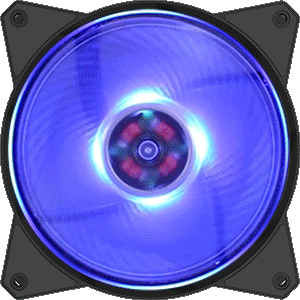

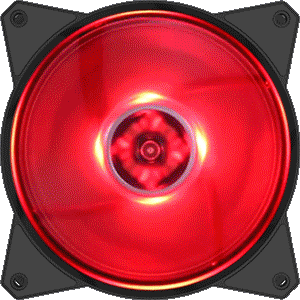

2 x MasterFan MF120R RGB(CONTROLLER INCLUDED)

Adjust the RGB lighiting with the motherboard software or use the included wired RGB LED controller to personalize the RGB lighting. Switch it up depending on your mood, the possibilities are endless.

↓ Click to Try ↓

Quick and Easy Installation

Tool-free mounting kit makes installation a breeze. Universal retention brackets are included, with full compatbiliity for:

Intel® LGA 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1

Dimensions

GM100
Specifications
Product Name MasterAir MA620P TUF Gaming Edition
Model MAP-D6PN-AFNPC-R1
CPU Socket Intel® LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 socket

AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / socket
Heat Sink Dimensions 116 x 110.1 x 165 mm (4.6 x 4.3 x 6.5")
Heat Sink Material 6 Heatpipes / CDC 2.0 / Aluminum Fins
Heat Sink Weight 850g (1.87lb.)
Heat Pipe Dimensions Ø6 mm
Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Speed 600 – 1,800 RPM (PWM) ± 10%
Fan Air Flow 53.4 CFM ± 10%
Fan Air Pressure 1.65mm H2O ± 10%
Fan MTTF 160,000 hours
LED Color RGB
Fan Noise Level 31 dBA (Max)
Fan Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.30 A
Fan Safety Current 0.37 A
Fan Power Consumption 3.6 W
Warranty 2 years
EAN Code 4719512071083
UPC Code 884102043581
