You Decide the Inside

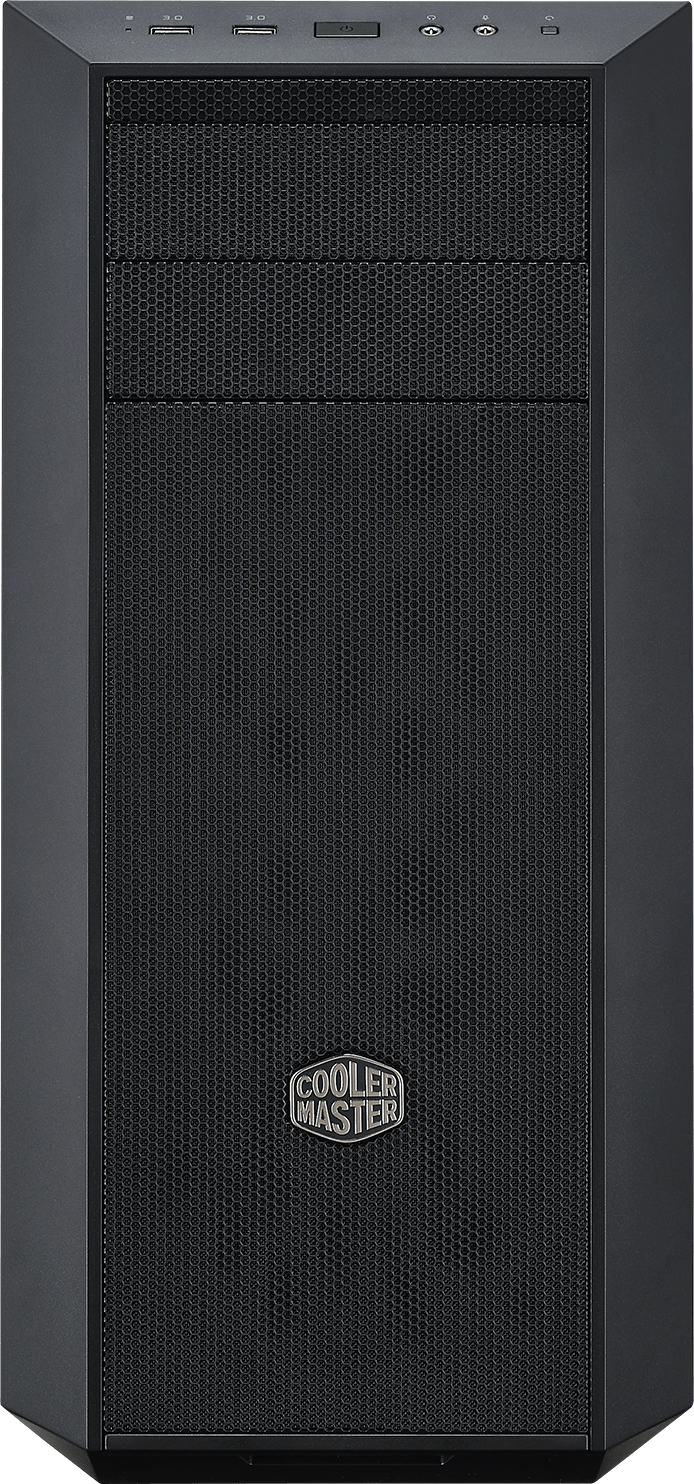

masterbox 5

FOR MOTHERBOARDS
Expanding the Possibilities
Motherboard tray cut-outs creatively rearrange space for any size motherboard
MCY-B5S1-KKNN-01
MCY-B5S1-KWYN-02
MCY-B5S1-KWNN-03
MCY-B5S1-KWYN-04
MCY-B5S1-KKYA60-05
MCY-B5P2-KWGN-00
(with tempered glass side panel)

Exploring the Interior
The MasterBox 5's design and smartly placed tray cut-outs make light work of installing or expanding multiple interior configurations. Remove, slide and rearrange the internal layout to support larger, high-end components, air and DIY water cooling.
Expanding the Possibilities
FOR STORAGE
Tray cut-outs also allow for the easy mounting and rearranging of SSDs and HDDs across the motherboard tray, along the bottom shelf, or on the back side of the tray (for SSDs).
Expanding the Possibilities
FOR CPU COOLERS
No pushing! There's enough elbow room inside, even for beastly coolers.
Unmatched Ventilation
FreeForm enables the option to install three front-mounted 140mm fans and a 280mm radiator for unmatchable ventilation due to a unique facility to horizontally shift the bottom-mounted hard disk drives. There's also support for up to six 140mm fans through the case, unique for a mid-sized tower.
Expanding the Possibilities
FOR GRAPHICS CARDS
Titans have a place inside too. Or your next VR-ready GeForce 1080.
Internal Configuration
YOUR AIR COOLING SET-UP
The uniquely modular design of the MasterBox creates space where there usually isn't. The case supports
1.Three 120mm fans
2.Four fans with use of optional front bracket
Internal Configuration
YOUR LIQUID COOLING SET-UP
The uniquely modular design of the MasterBox creates space to fit the biggest DIY cooling contraptions.*
*360mm radiator installable with optional front bracket
Clean Cabling
FOR CLEAN ACCESS
All system setups have hidden space for cable management
Easy Fun
Easy Computing
Challenge the confines of the MasterBox 5 by creating intuitive and flexible layouts for components and cables, large or small. Then comes the easy part:building.
Specifications
Model Number MCY-B5S1-KKNN-01 MCY-B5S1-KWYN-02 MCY-B5S1-KWNN-03 MCY-B5S1-KWYN-04 MCY-B5S1-KKYA60-05 MCY-B5P2-KWGN-00
Available Color Black
Materials Steel body, Plastic mesh bezel Steel body, Plastic front cover, Tempered glass panel
Dimensions (LxWxH) All 500 x 220 x 475mm
Motherboard Support ATX, Micro-ATX, Mini-ITX
Expansion Slots 7
Drive Bays 5.25" Cages sold
separately
2 Cages sold
separately
2 2 No
Combo 3.5"/ 2.5" 2 2 2 2 Cages sold
separately
2
SSD 1 1 2 2 2 1
I/O Port USB 3.0 x 2, Audio in / out
Pre-installed Fan(s) 120mm x 1 120mm x 1 120mm x 2 120mm x 2 120mm x 3 120mm x 1
Fan Support Front 120mm / 140mm x 2 120mm / 140mm x 3 120mm / 140mm x 2 120mm x 3 / 140mm x 2
Top 120mm / 140mm x 1
Rear 120mm x 1
Liquid Cooling Support Front 240mm / 280mm radiator, up to 50mm thickness without fan 240mm / 280mm / 360mm radiator, up to 50mm thickness without fan
Rear 120mm x 1
Clearances CPU Cooler 167mm / 6.5"
PSU 180mm / 7.1"
GPU 285mm / 11.7"(w/3.5" HDD cage) 410mm / 16.1"
410mm / 16.1"(w/o 3.5" HDD cage) 410mm / 16.2"(w/o 3.5" HDD cage)
Cable Routing Behind Motherboard Tray 25mm - 35mm
Dust Filters Front, bottom
Power Supply Support Bottom mount, ATX Bottom mount,
B2 600W
Bottom mount, ATX
EAN 4719512050705 4719512050736 4719512050729 4719512050712 4719512050682 4719512063514
UPC 884102027789 884102027819 884102027802 884102027796 884102027765 884102036194
